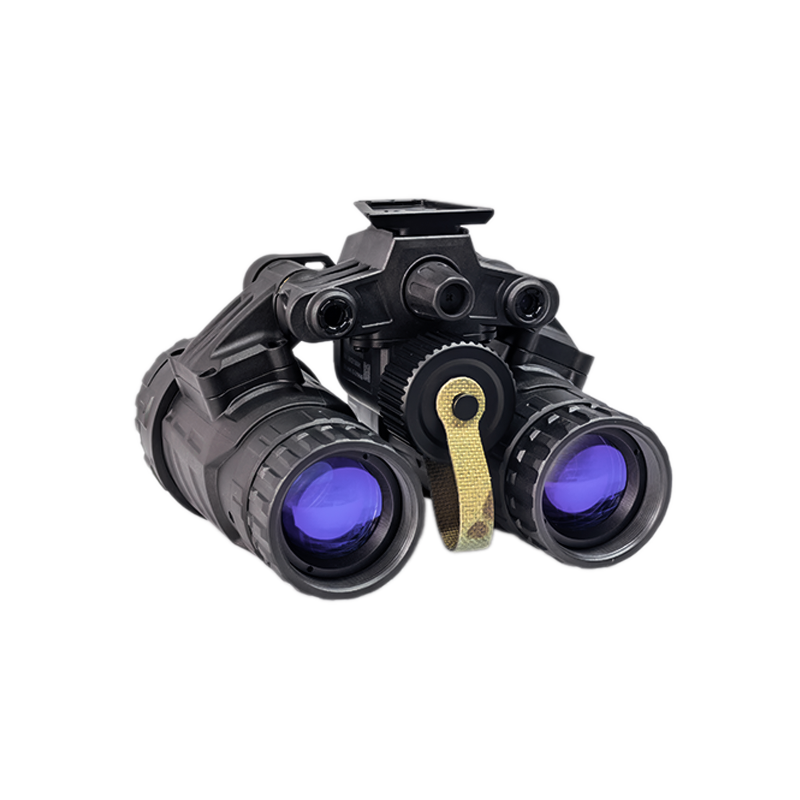

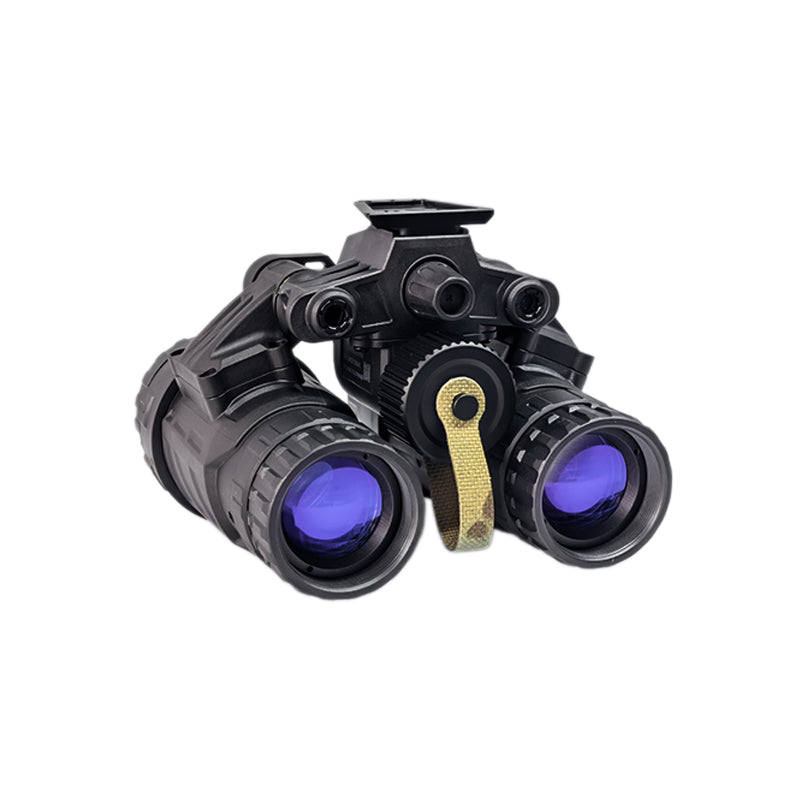

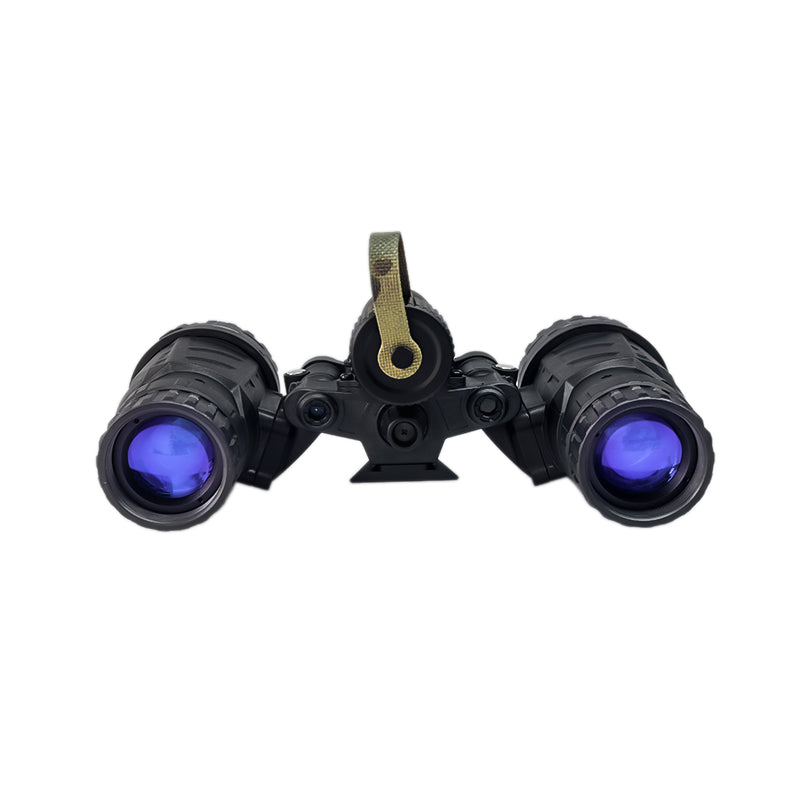

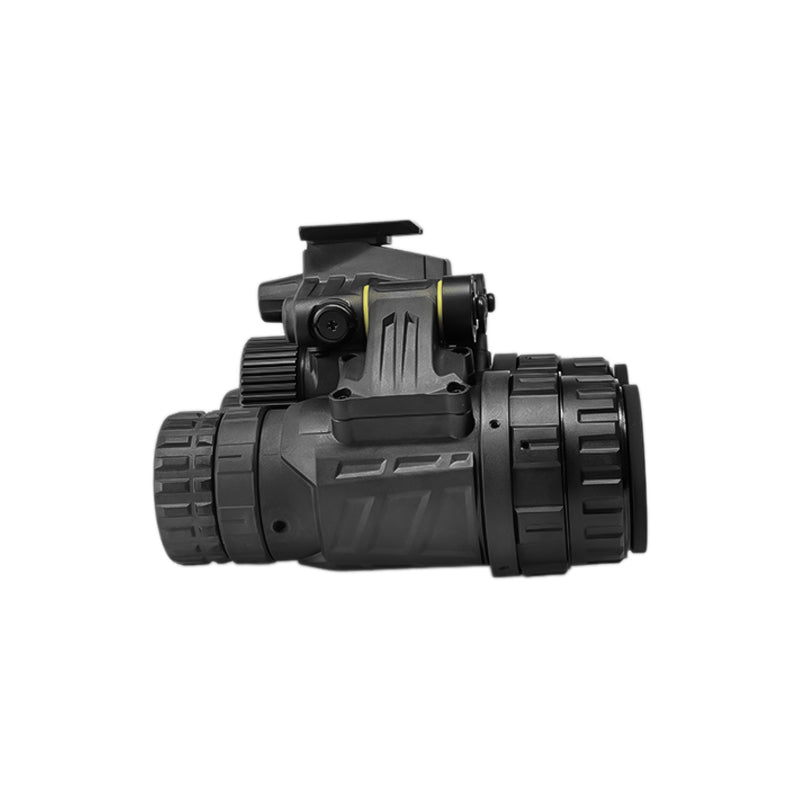

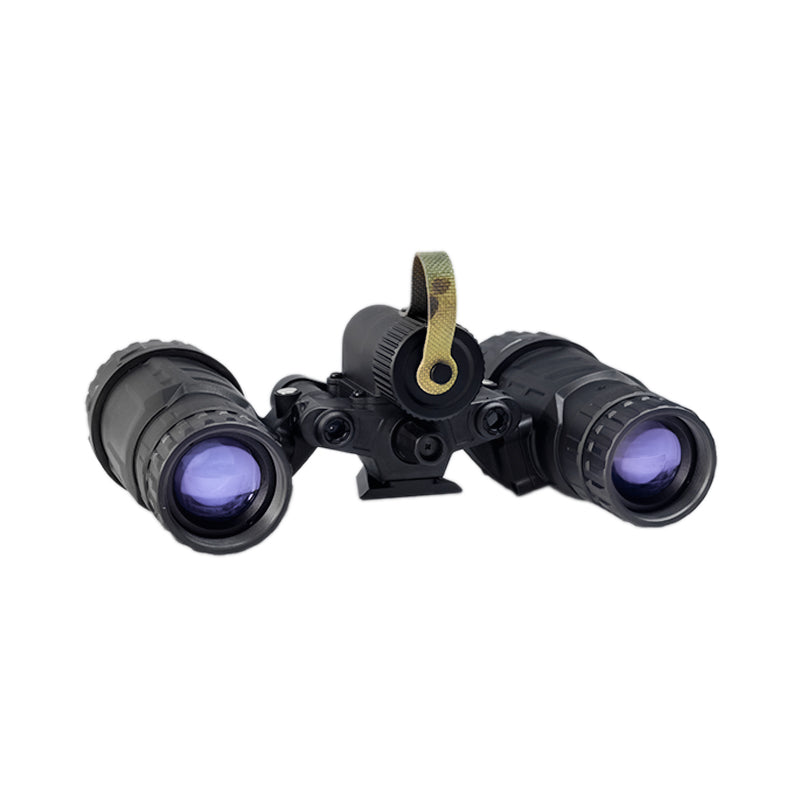

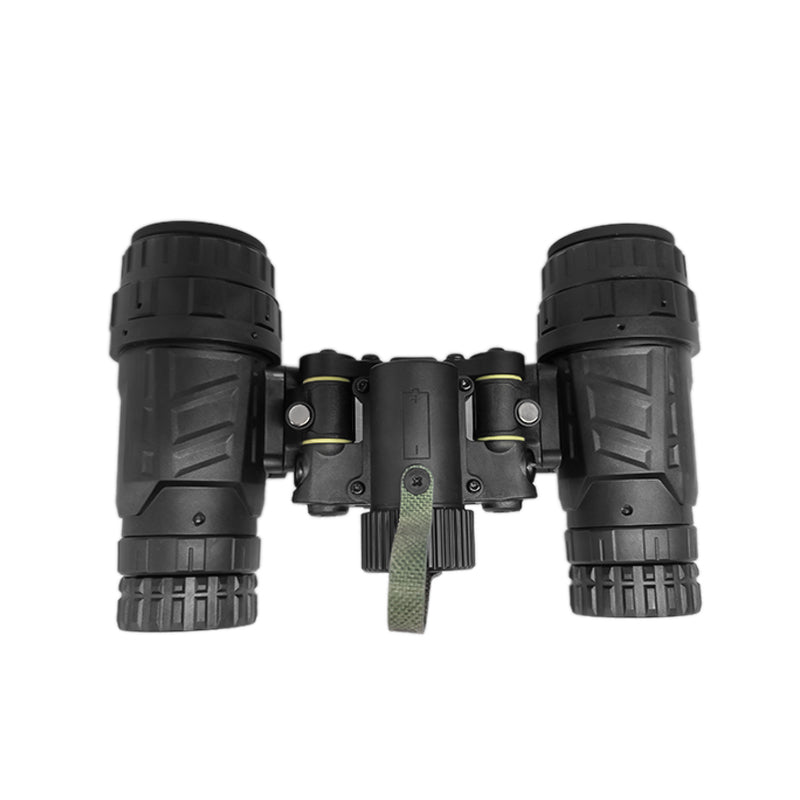

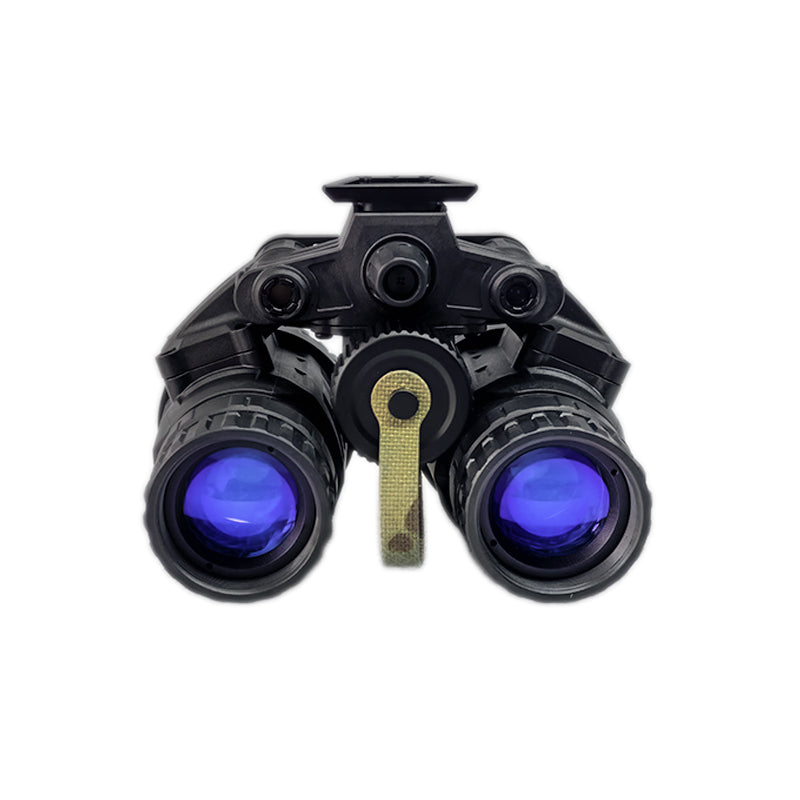

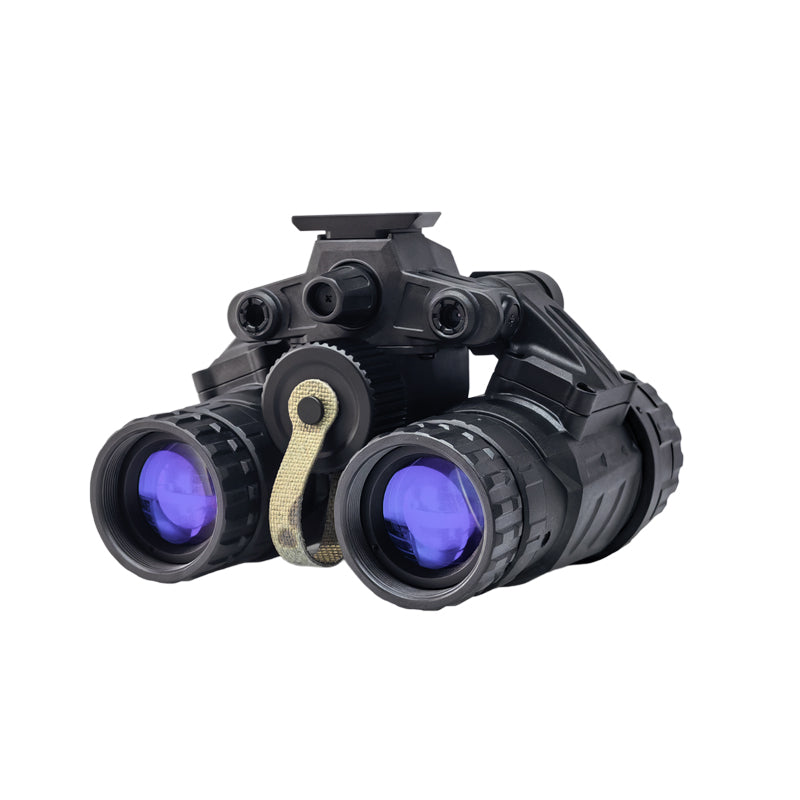

ELF-31H/Jerry-31S Night Vision Goggles
ELF-31H/Jerry-31S Night Vision Goggles
Couldn't load pickup availability
The ELF-31H binocular low-light night vision device features a modular design with standard interfaces. It offers adjustable field-of-view (FOV), interpupillary distance (IPD), and diopter, and is provided with built-in IR fill-in light and high light protection. Multiple power supply modes are supported. The body is fabricated of lightweight PEEK composite material for superior wearing comfort.
Key Features
-World-class optical imaging
-Gain adjustment
-Multiple optional FOM values and tube types, including MX10160 and MX11769
-Built-in IR fill-in light and high light protection
Specification
|
Optical General |
|
|
Magnification |
1× |
|
Focus Range |
250mm ~ +∞ |
|
Focal Length |
27mm |
|
FOV |
40° |
|
Image Intensifier Tube |
|
|
Tube Type |
GEN2+ / GEN3 (Optional) |
|
Resolution |
18 mm (3-wire) |
|
Phosphor |
White/Green |
|
FOM |
FOM1400/FOM1800 |
|
Advanced Functions |
|
|
IR Illuminator |
√ |
|
Strong Light Protection |
√ |
|
Auto Power-off |
Flip-up, Turn on side |
|
Brightness Control |
√ |
|
Eyepiece |
|
|
Exit Pupil Distance |
25mm |
|
Diopter |
-6 ~ +2D |
|
Physical |
|
|
Dimensions (W × H × D) |
108mm×106mm×83mm |
|
Weight |
<550g |
|
Power Supply |
|
|
Battery Type |
1 × AA / 1 × CR123A |
|
Battery life |
>37h |
|
Environmental |
|
|
Immersion |
20m |
