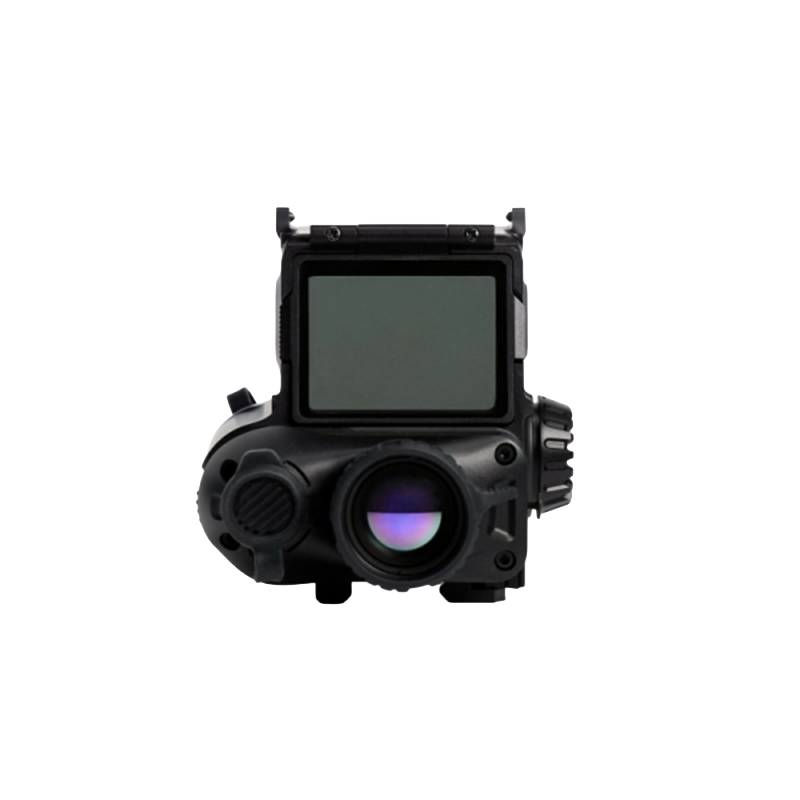

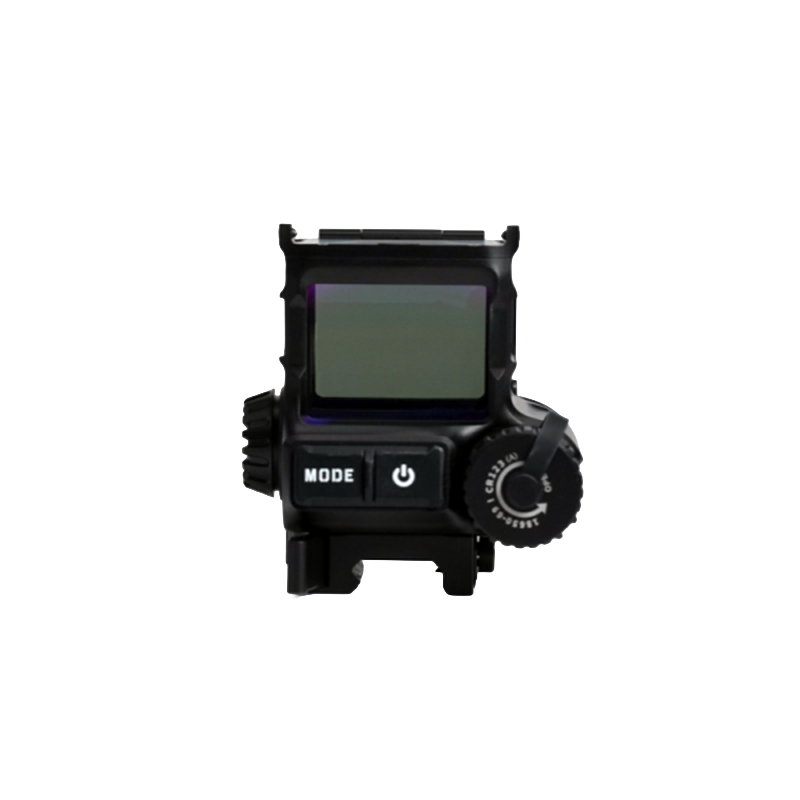

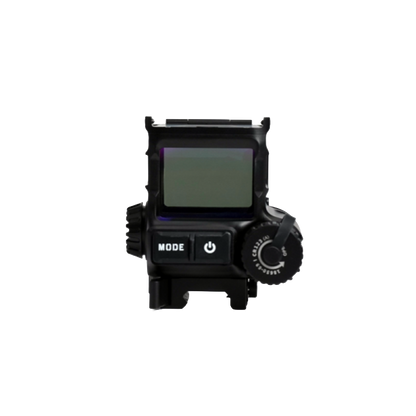

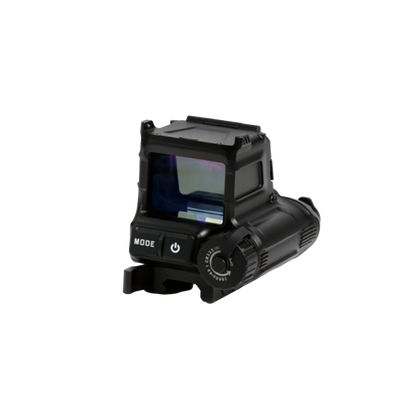

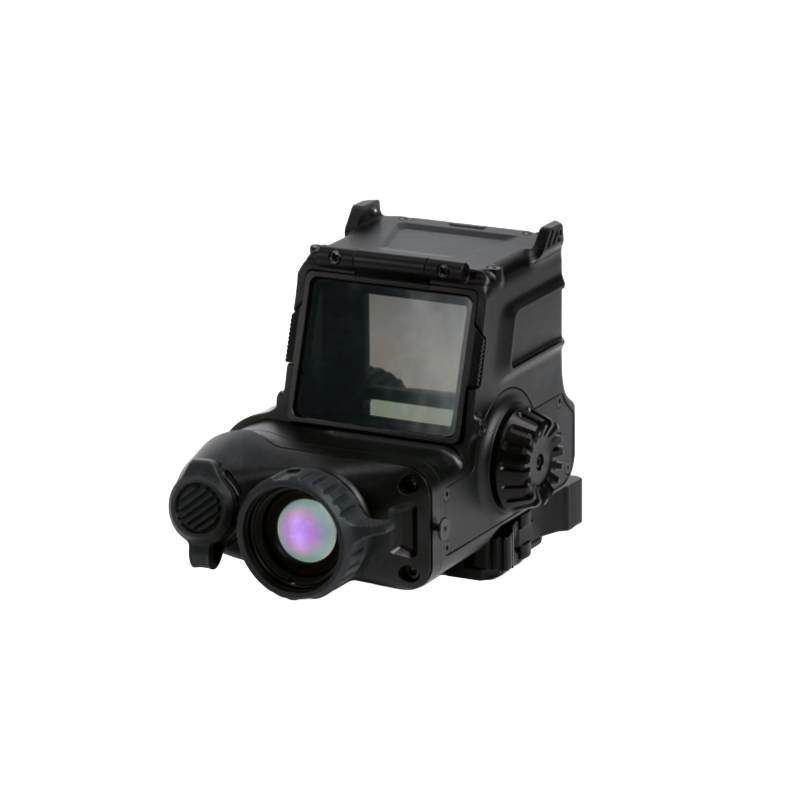

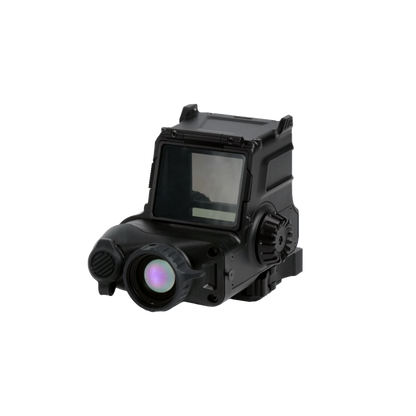

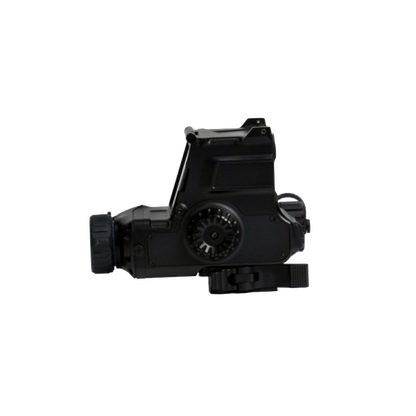

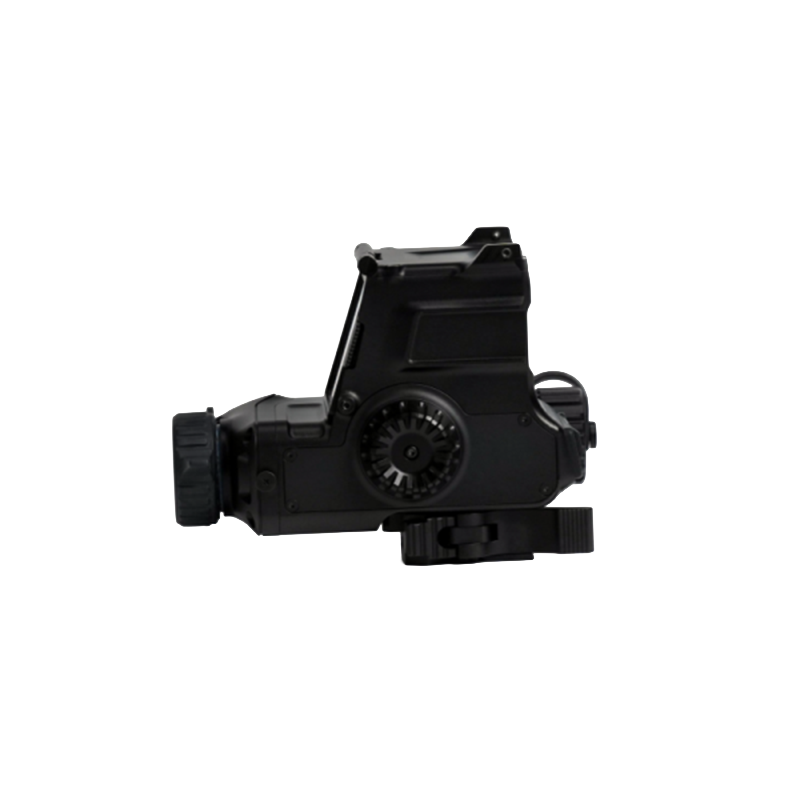

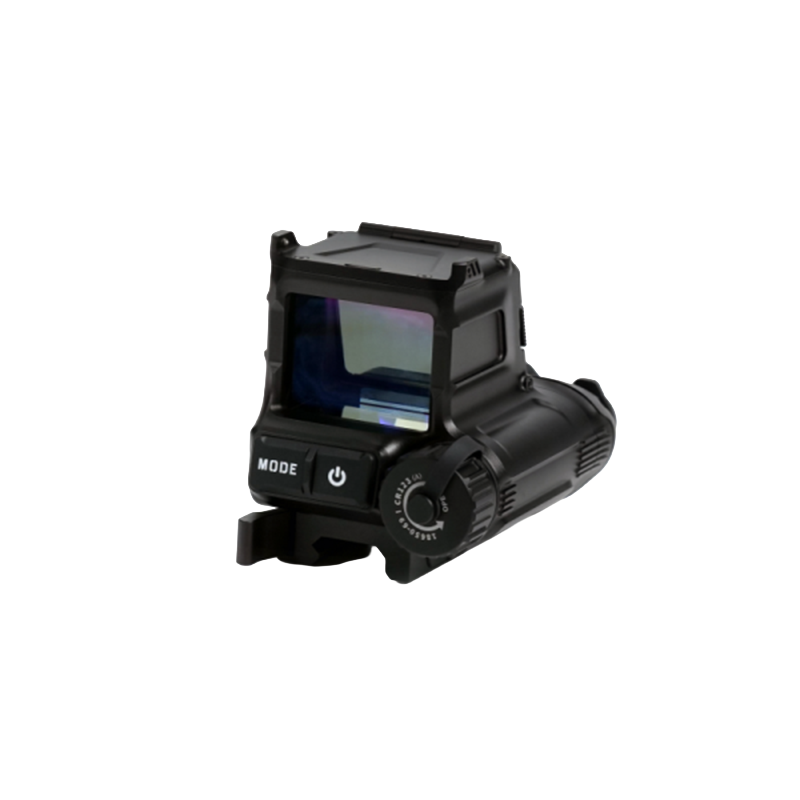

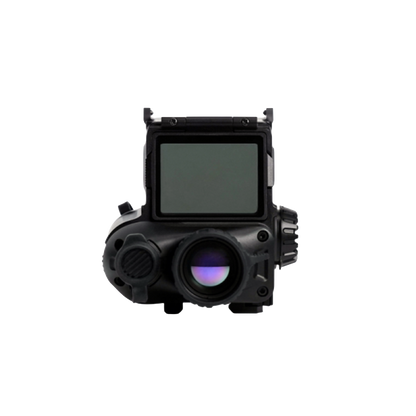

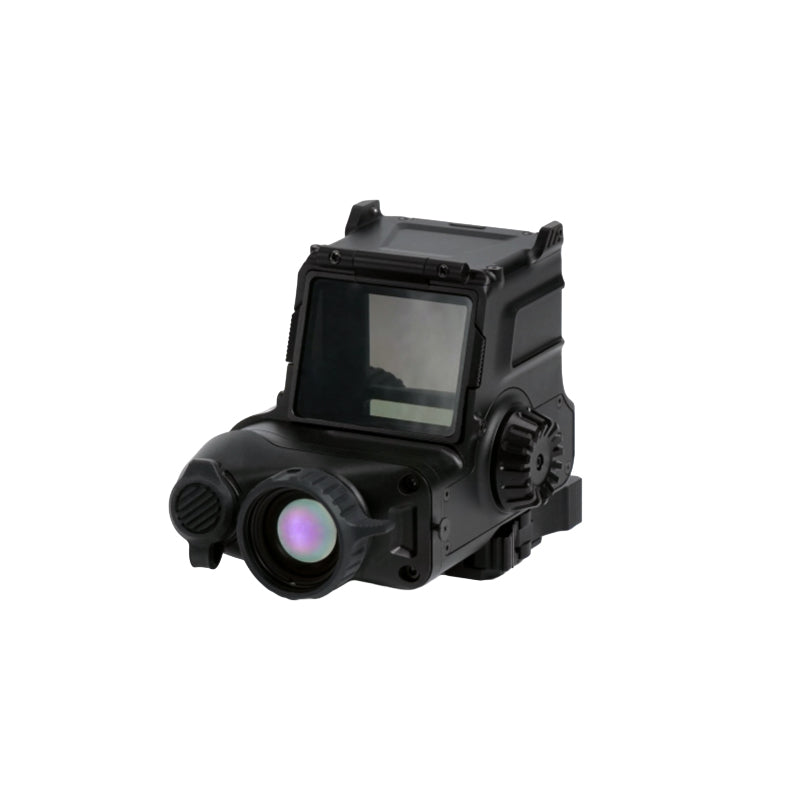

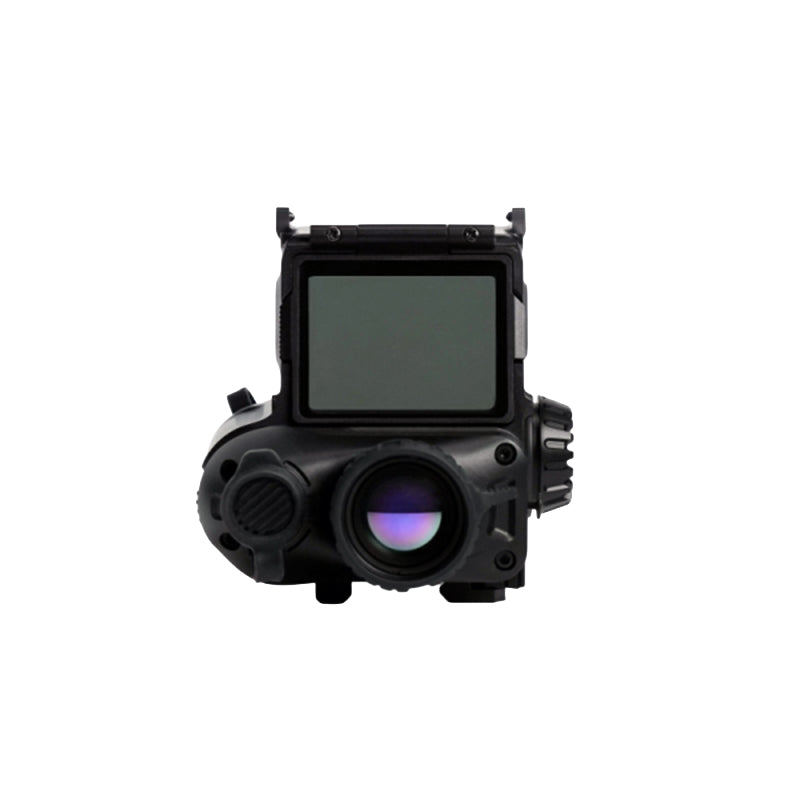

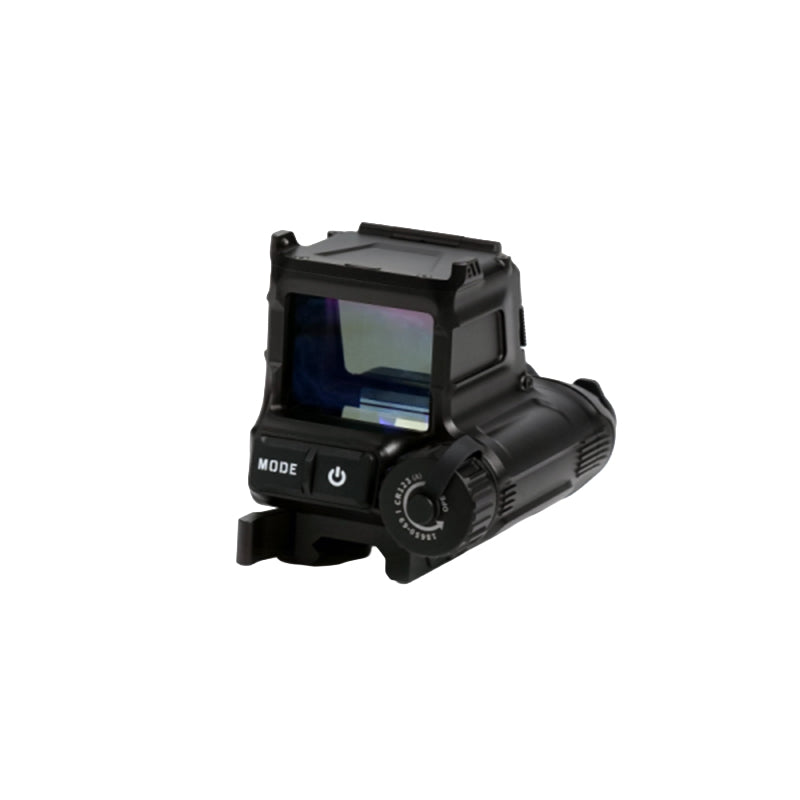

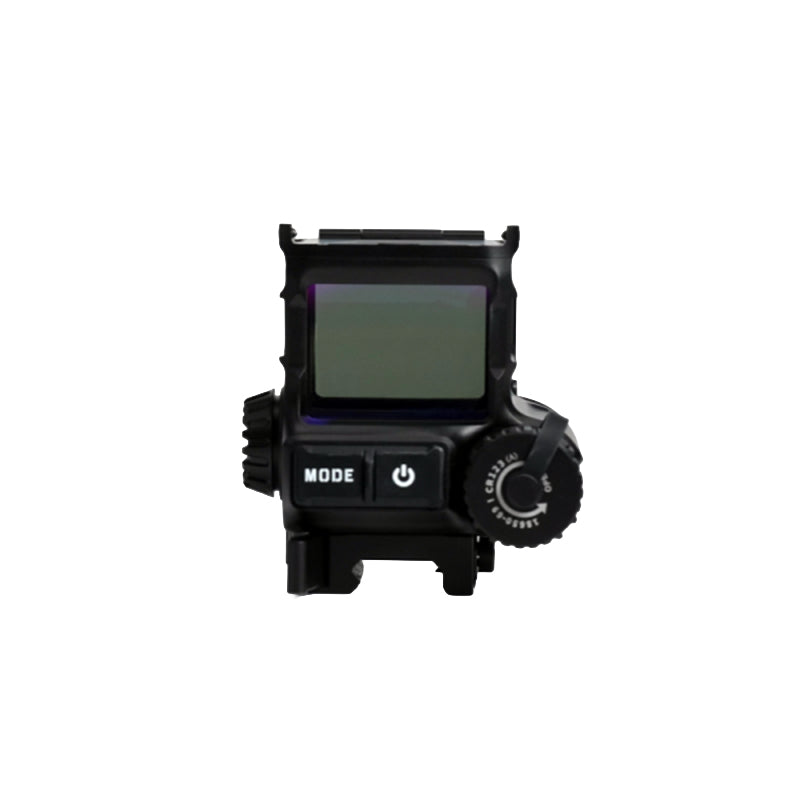

Pre Sale GODZILLA-FR Thermal-Red Dot Hybrid Sight
Pre Sale GODZILLA-FR Thermal-Red Dot Hybrid Sight
Couldn't load pickup availability
The GODZILLA-FR is a thermal fusion red dot scope designed for all-weather environment sensing requirements. The product deeply integrates a red dot sight with thermal imaging technology; the red dot enables rapid targeting, while thermal imaging clearly reveals target outlines and environmental details in low light, dark, smoky, or dusty conditions.
Key Features
Fast target capture – 42×32 mm ultra-large viewing window
All-weather target recognition – It supports five recognition modes: red dot, highlight, outline, red-hot, and black-hot.
One-button NV compatibility – A dedicated NV button for linkage with night vision devices.
Extended duration with dual systems – It can operate for over 10 hours in the thermal imaging mode, even over 80 hours in the red-dot mode.
Delivery Time: 1 month
Specification
| Thermal Channel | |
| Sensor Resolution | 640 × 512 pixels, 10 μm |
| Frame Rate | 60 Hz |
| Focal Length | 31.5 mm / F1.0 |
| FOV (H × V) | 11.6° × 8.7° |
| System Magnification | 1× |
| Digital Zoom | 1× / 2× / 4× |
| Display | |
| Screen Type | OLED (Red only), 1024 × 768 |
| Glass Window | 42 × 32 mm |
| Exit Pupil Distance | 50–200 mm |
| Advanced Functions | |
| Image Format | Red dot, Outline, Highlight, Red hot, Black hot |
| Reticle Type | Point, Circle + Point, Circle + Point + Reticle |
| Brightness Adjustment | 5 levels (Day Mode) / 3 levels (Night Mode) |
| Physical | |
| Dimensions (W × H × D) | 129 × 84 × 87 mm (No Picatinny rail) |
| Weight | ≤550 g (including battery) |
| Power Supply | |
| Battery Type | 1 × 18650 / 2 × CR123 / 2 × CR123A |
| Battery Life | >10 h (Thermal imaging); >80 h (Red dot) |
| Interfaces | |
| External Power Supply | 5–24 V DC |
| Video Output | UVC |
| Wired Data | Serial port, USB |
| Environmental | |
| Shock Resistance | 1000 g, 0.3 ms, 1 Hz |
| Immersion | IP67 |
