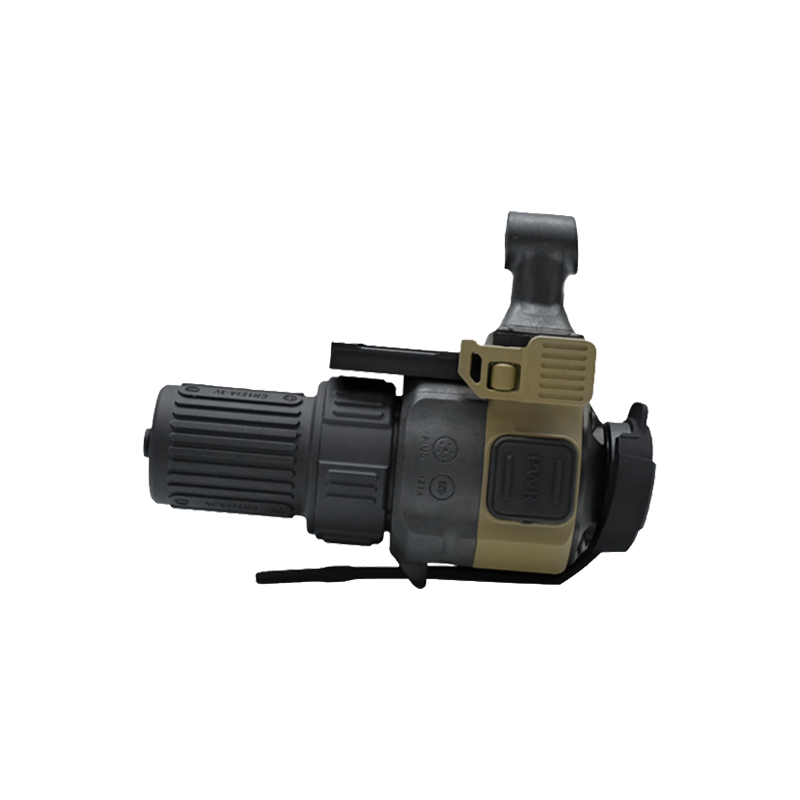

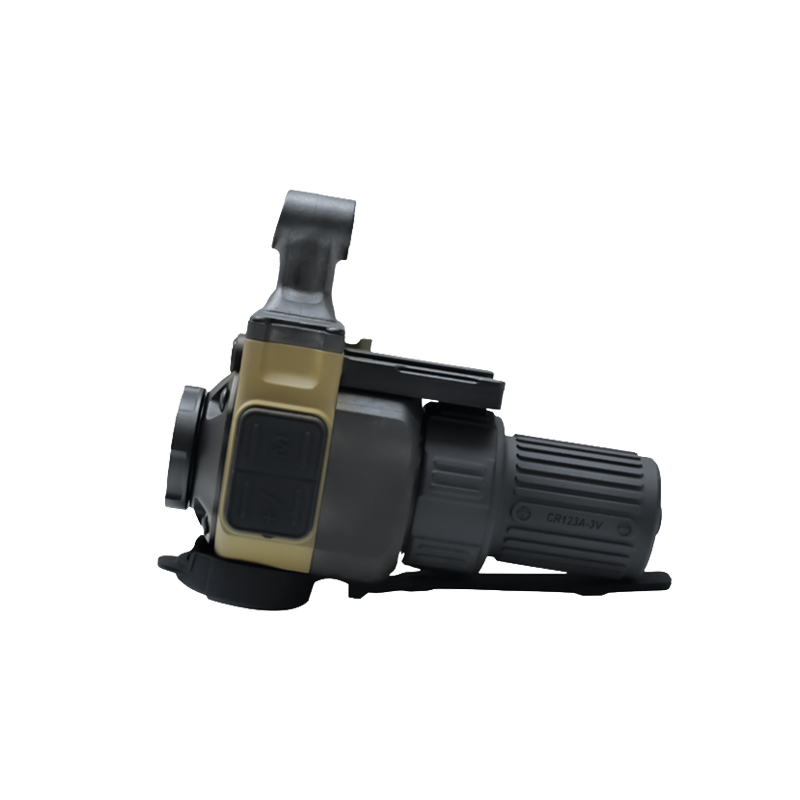

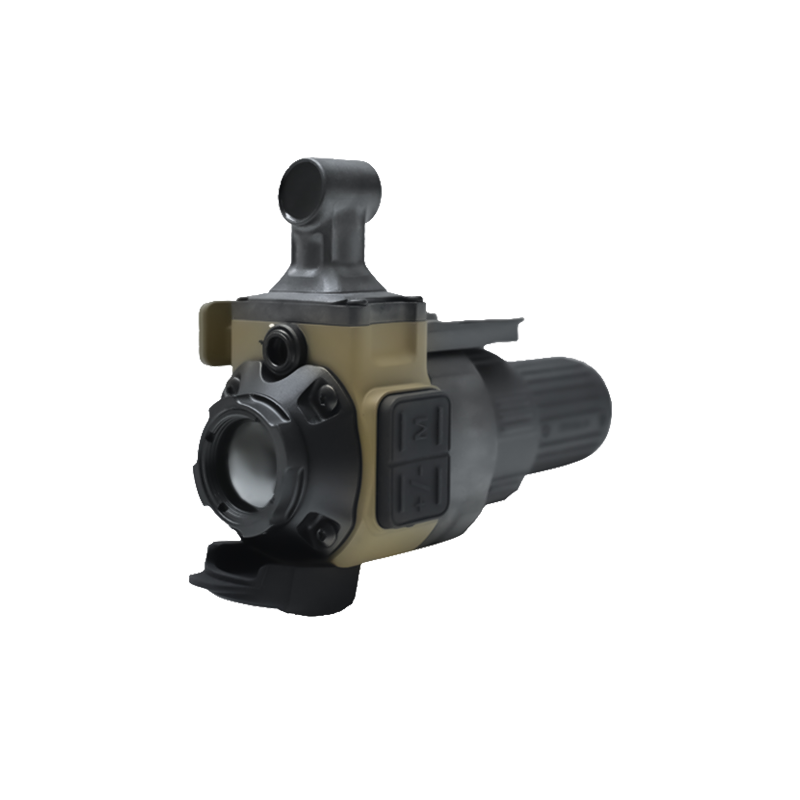

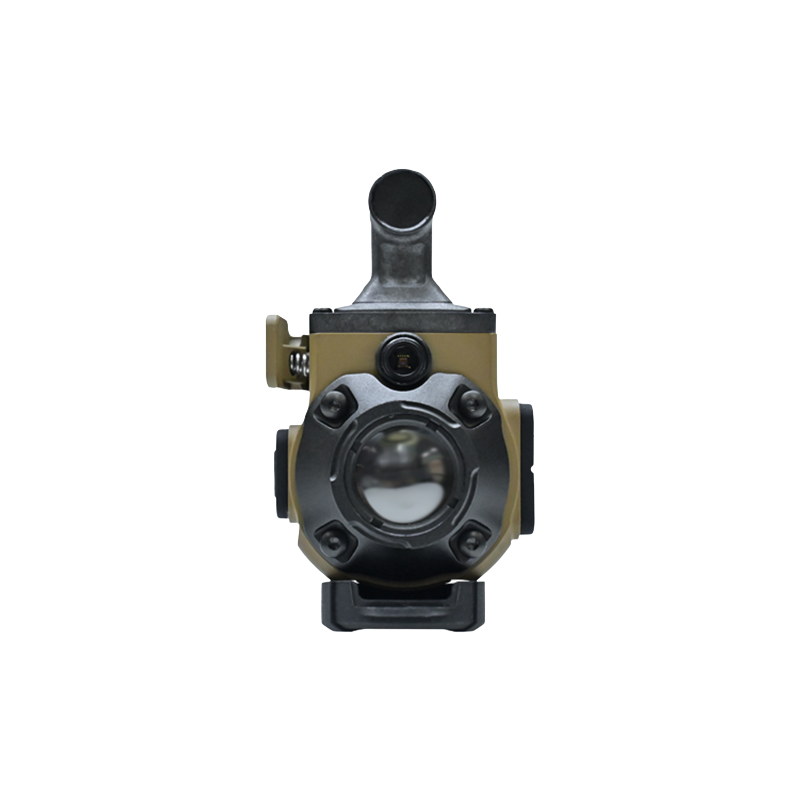

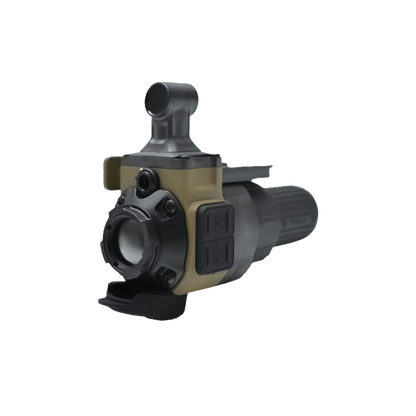

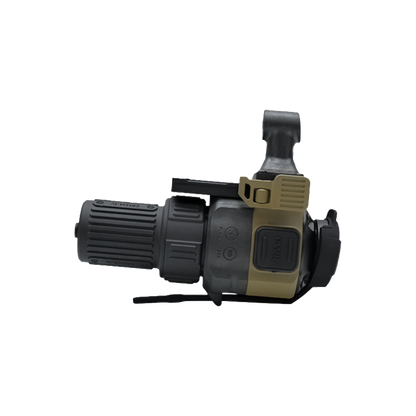

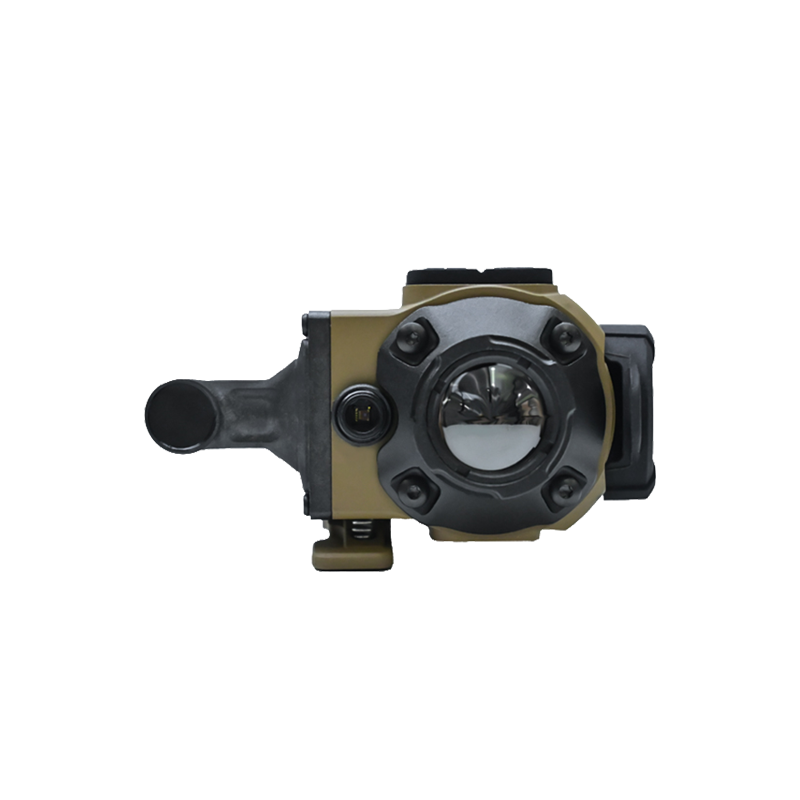

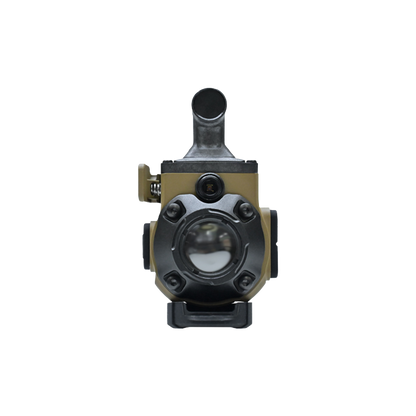

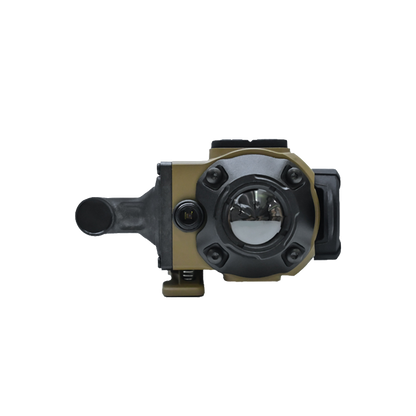

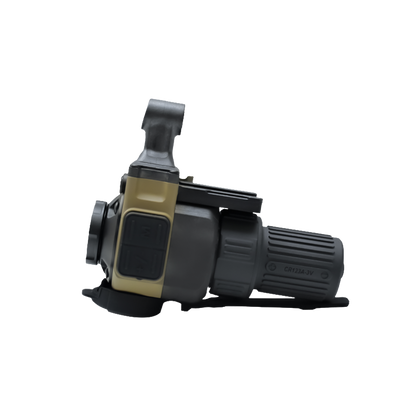

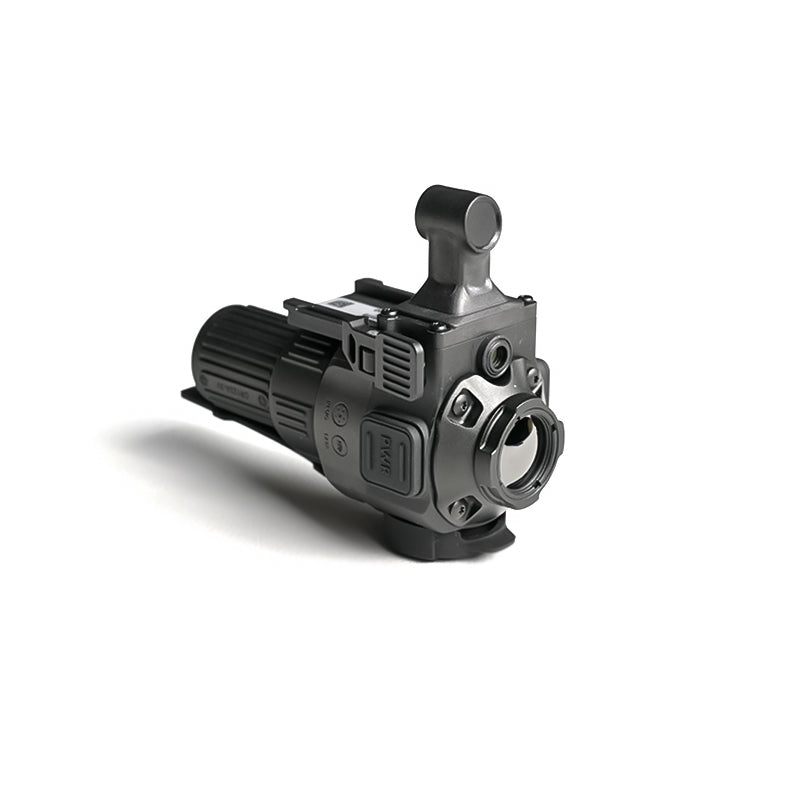

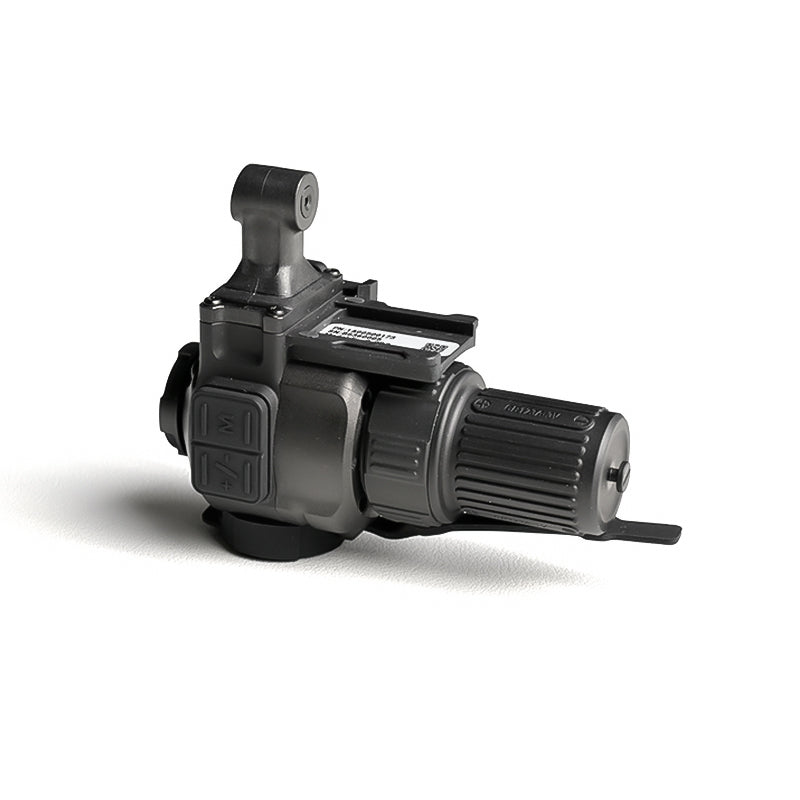

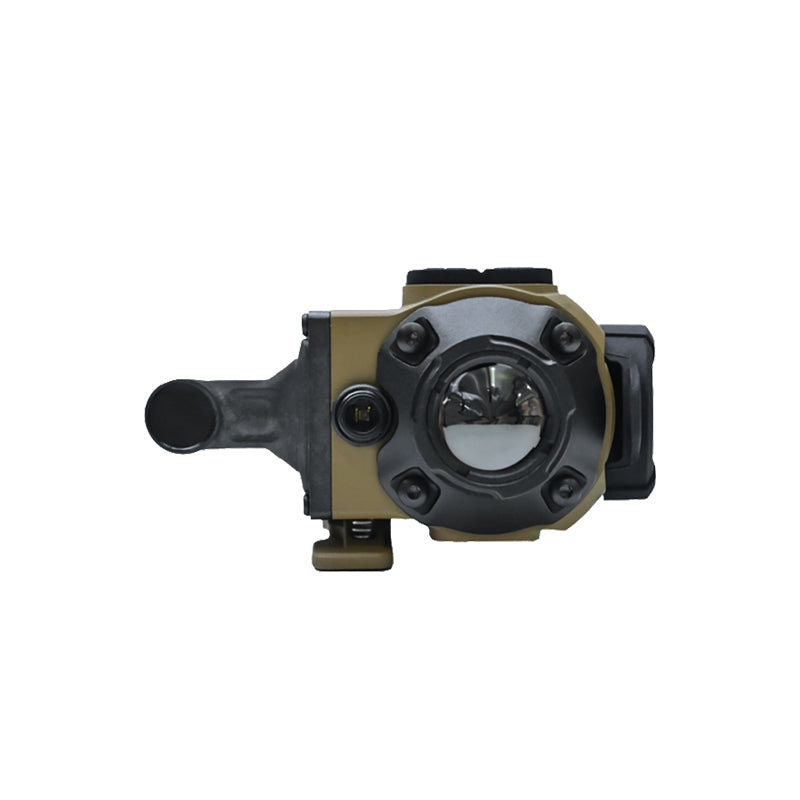

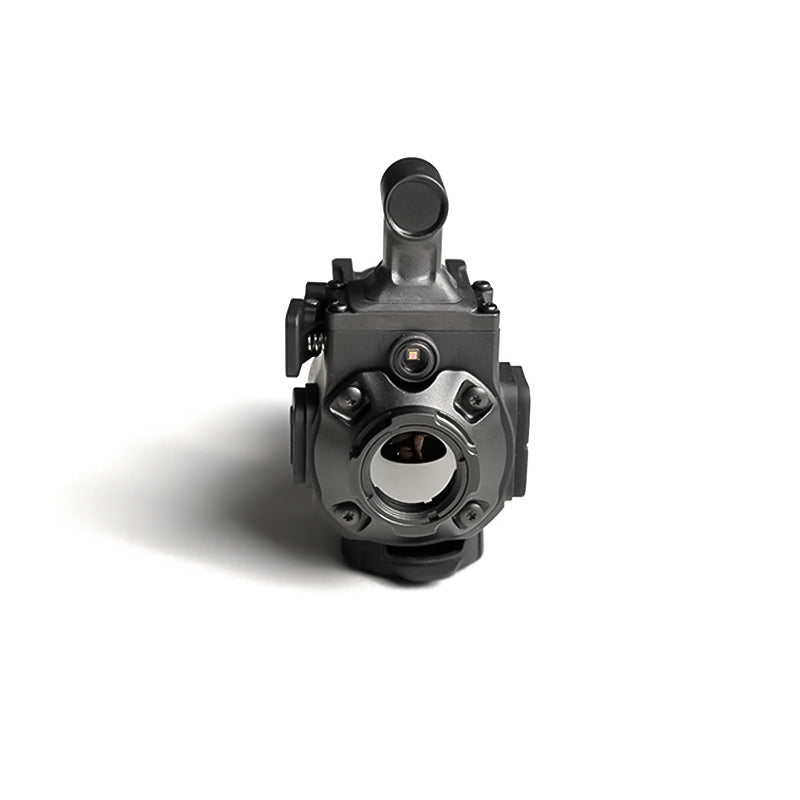

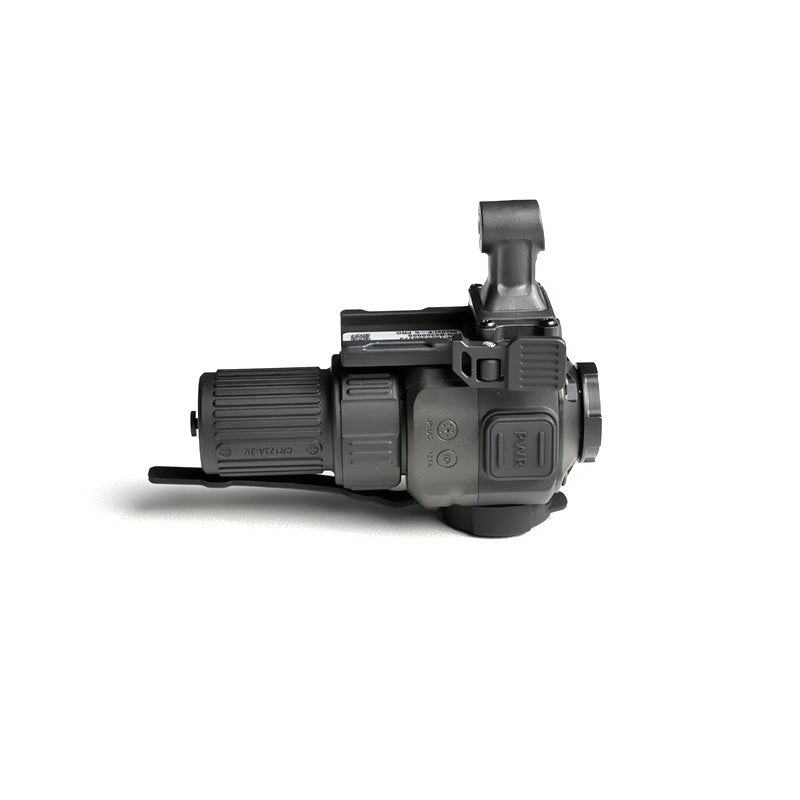

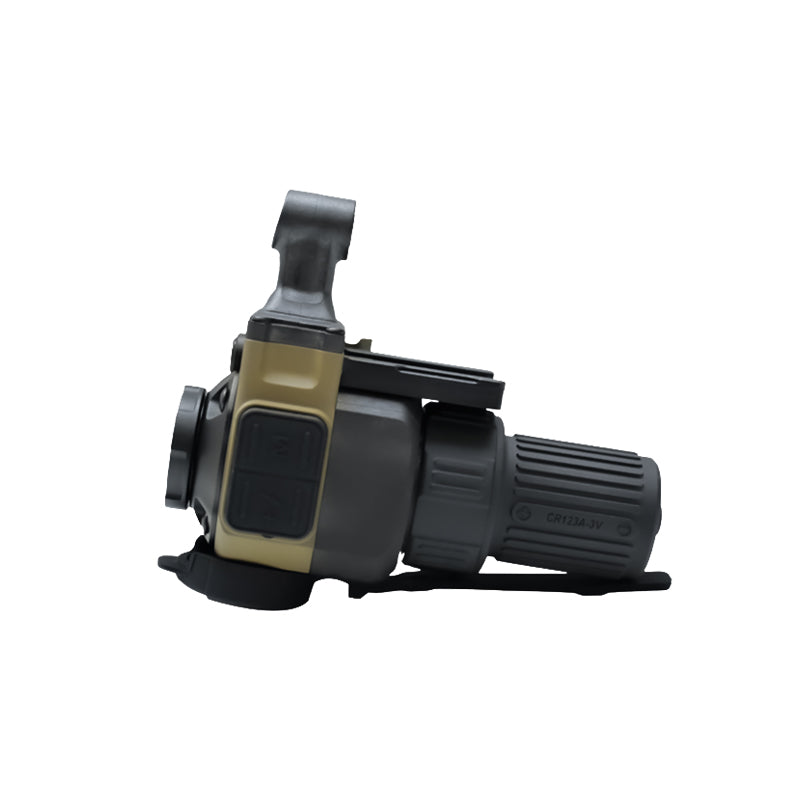

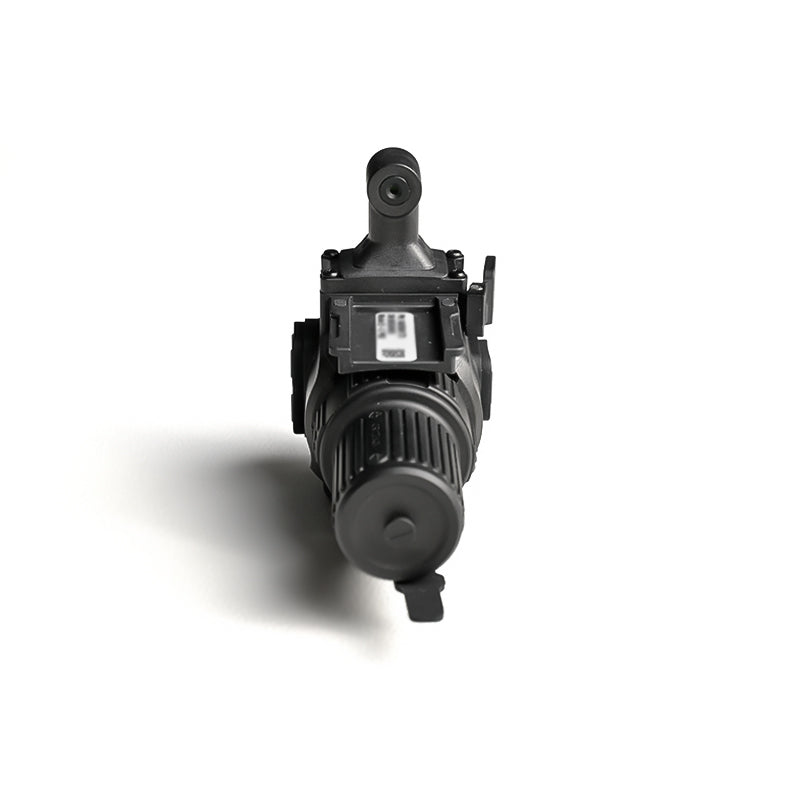

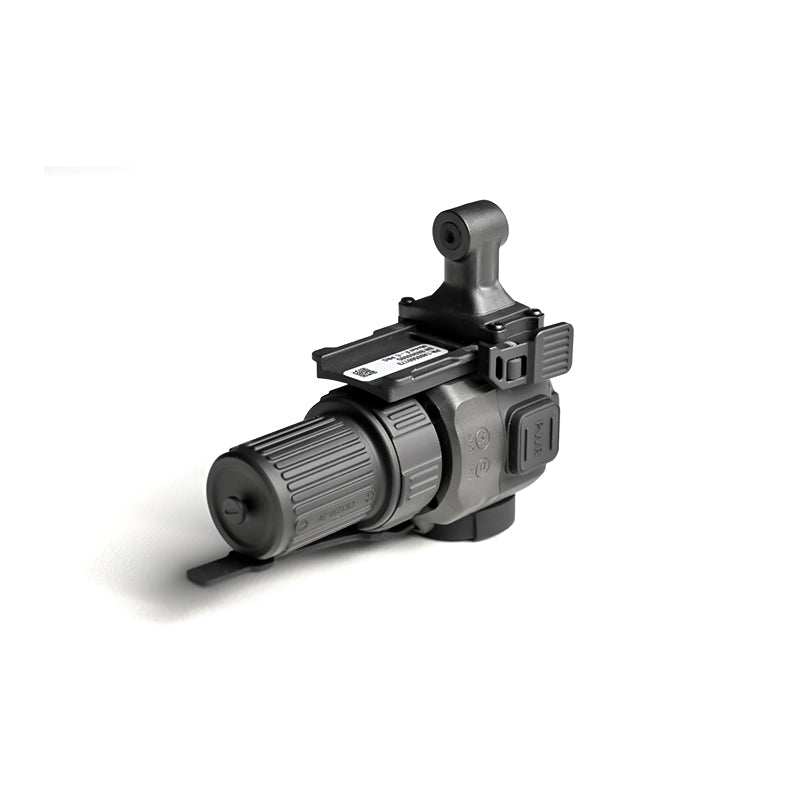

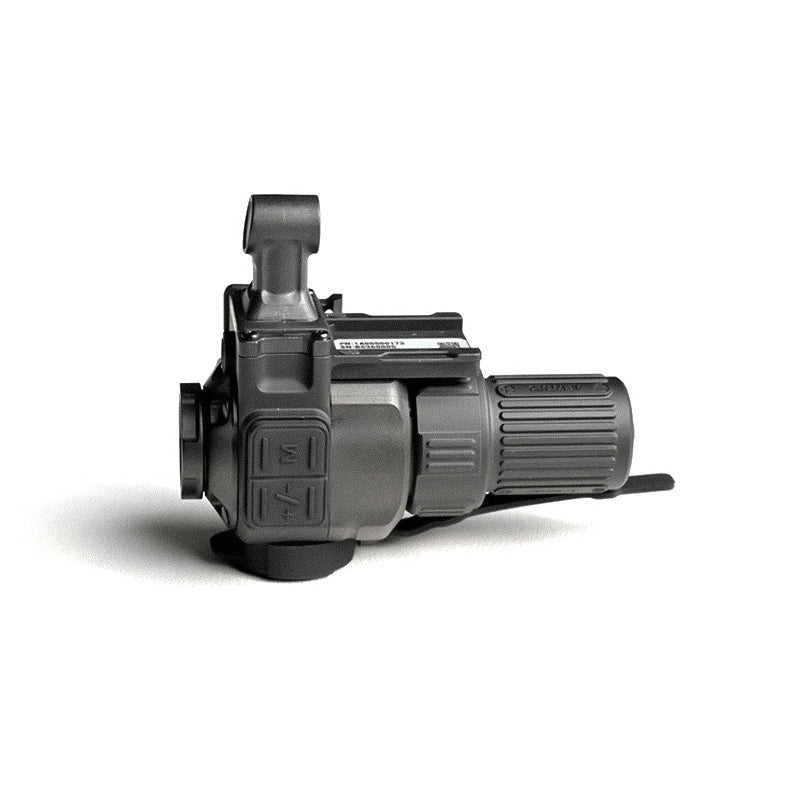

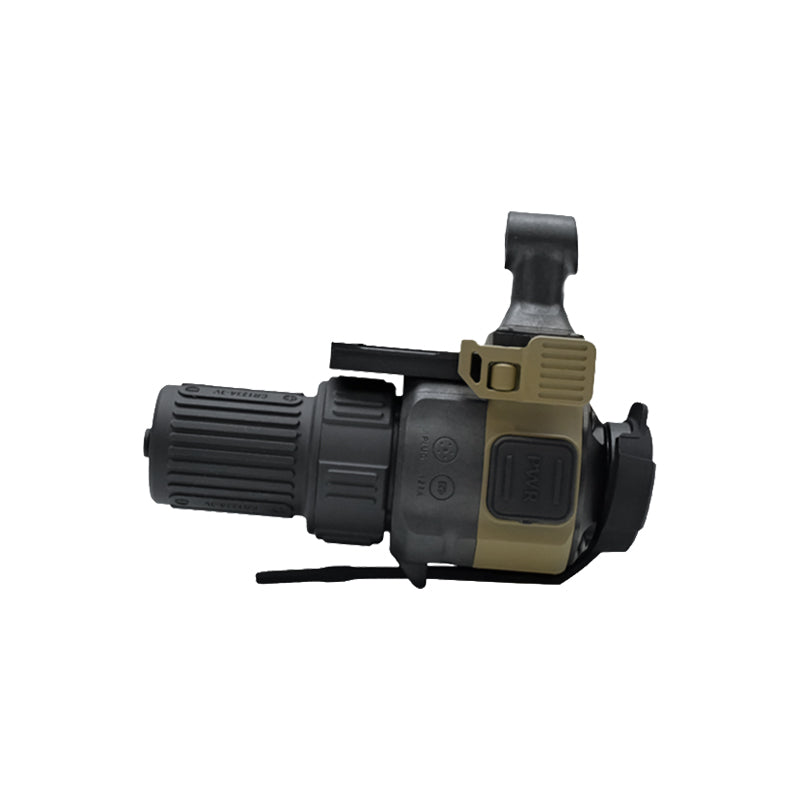

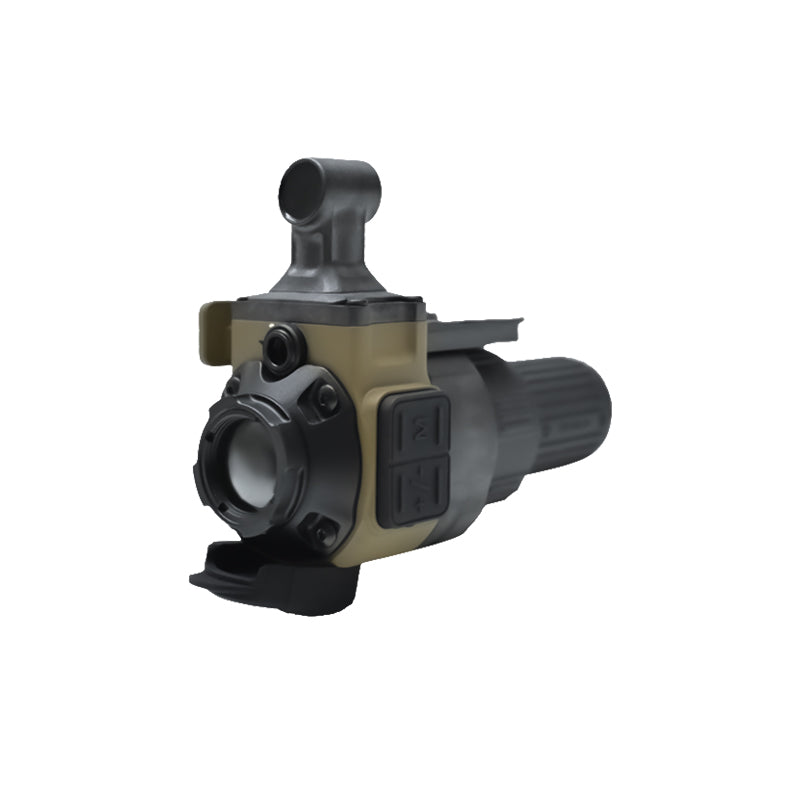

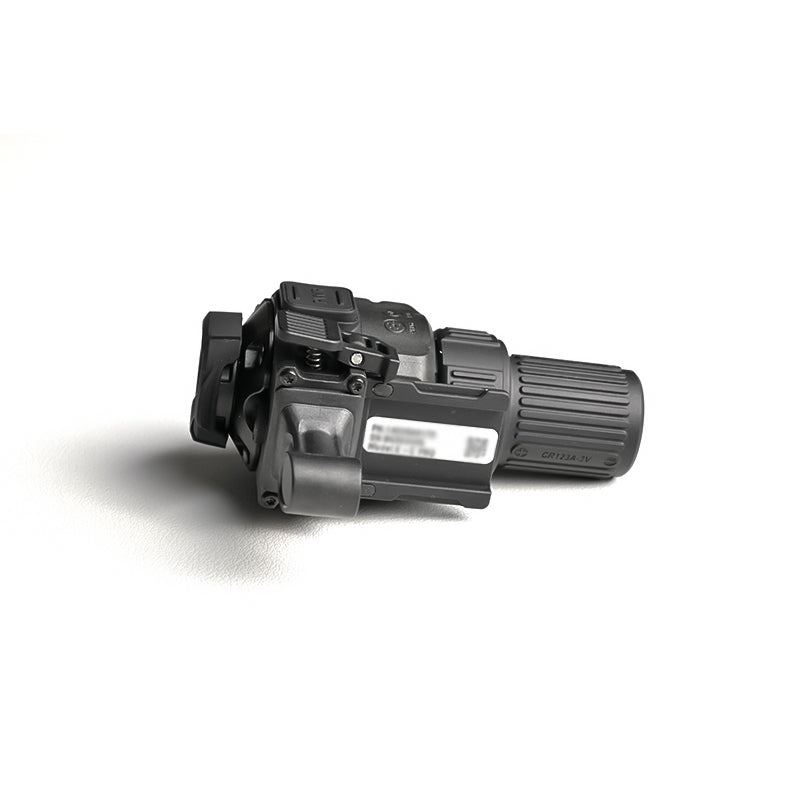

Jerry-C Pro is a clip-on thermal imager designed to provide thermal vision capability and enhanced night situational awareness to conventional night vision devices (with image intensifier tubes) and digital night vision devices. The system is defined by its small form factor and light weight of only 65g. Its primary function is to upgrade existing NVDs by fusing a thermal image with the night vision image, enhancing the operator's ability to detect heat sources. The Jerry-C Pro is mounted externally using a mounting ring, allowing for simple installation and use without calibration.
Key Features:
640×512 detector resolution
Expanded thermal overlay from 30° (Jerry-C) to 35°
Onboard digital magnetic compass

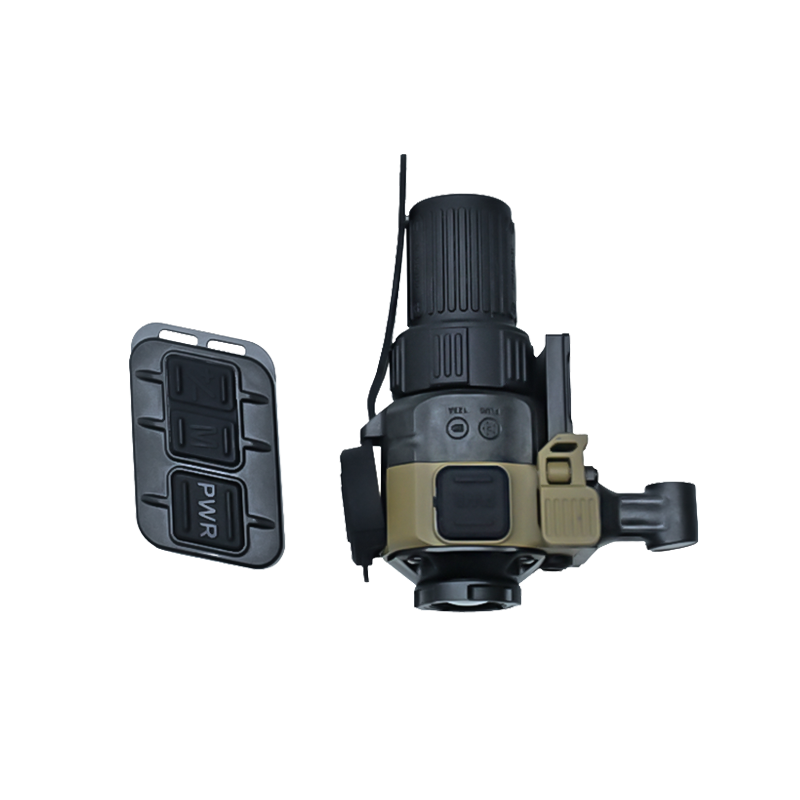

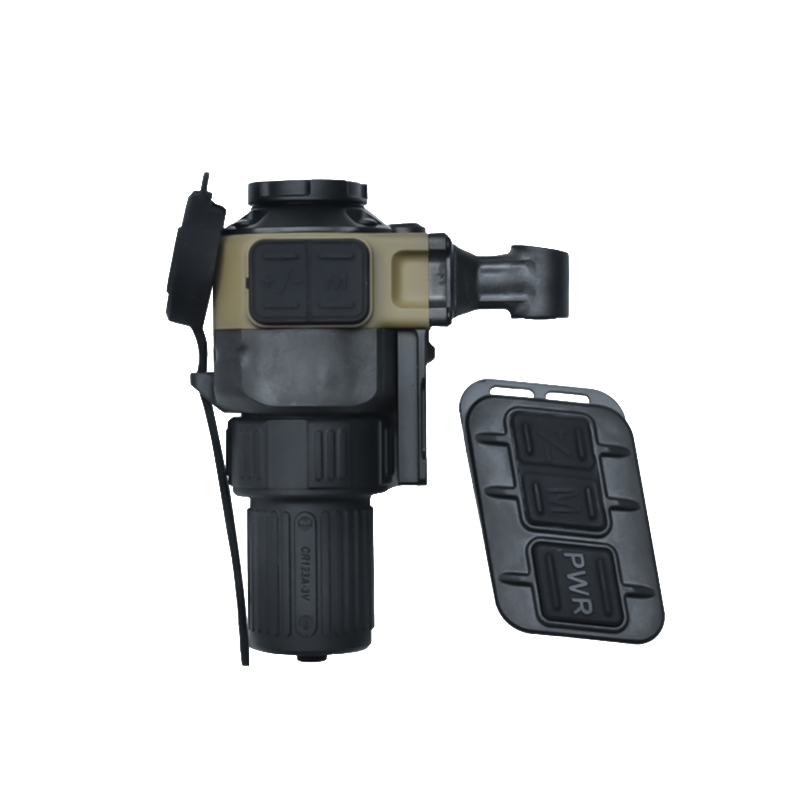

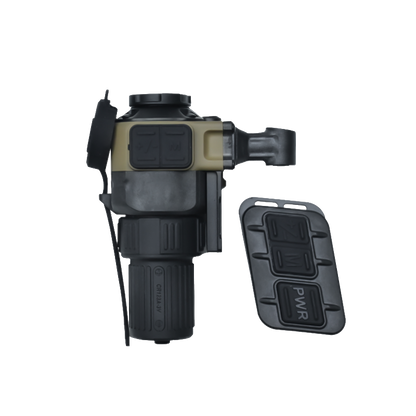

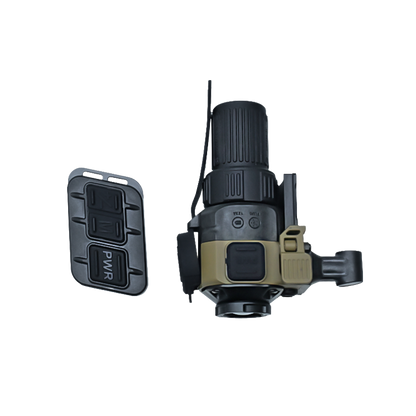

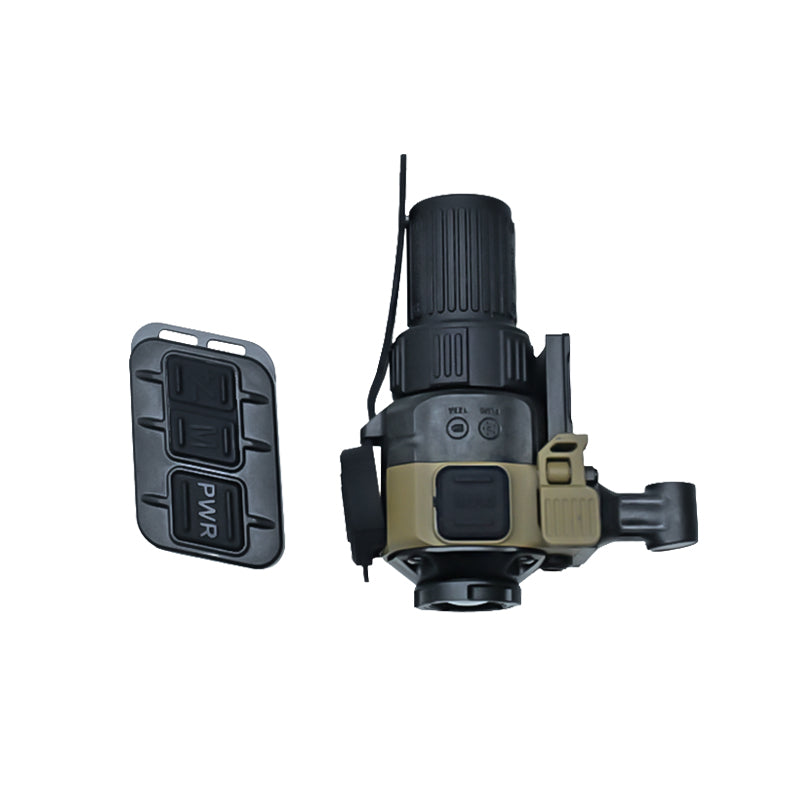

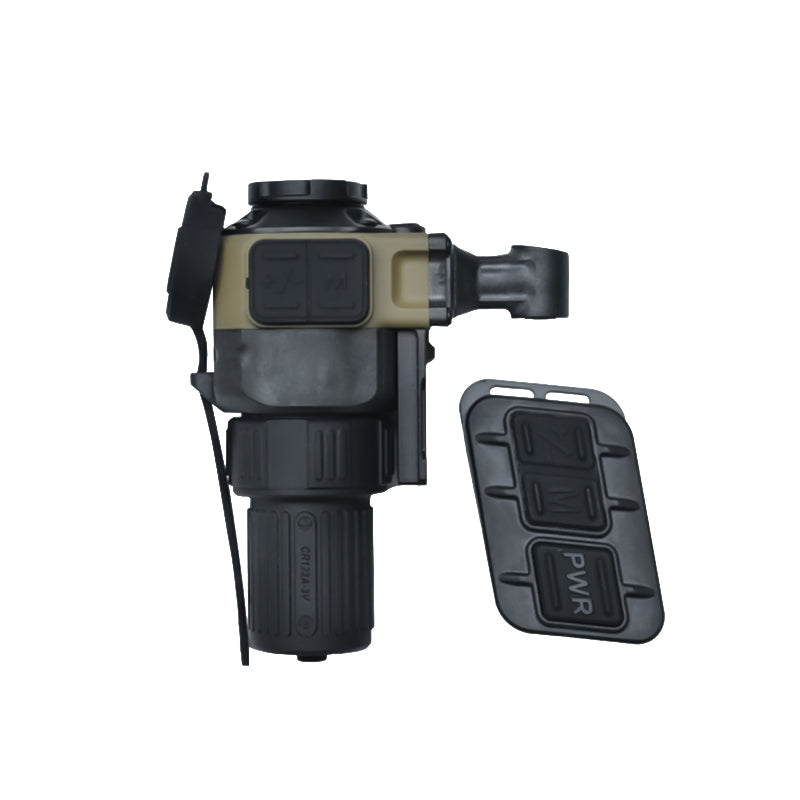

Bluetooth remote control
Refined button controls
Upgraded imaging algorithm
Specifications
Detector
640×512-12μm
Aperture
F/1.0
Magnification
1×
FOV (H × V)
35°×30°
Image Modes
Highlight / Outline / Breath (pulsing)
Detection Distance
700m+
Automatic Control
Auto-Brightness Control, Automatic Shutdown, Auto Standby
Compass
Electronic Compass (degree)
Battery Life (22°C)
3 Hours (1×CR123A), 10 hours (Battery Pack)
Power

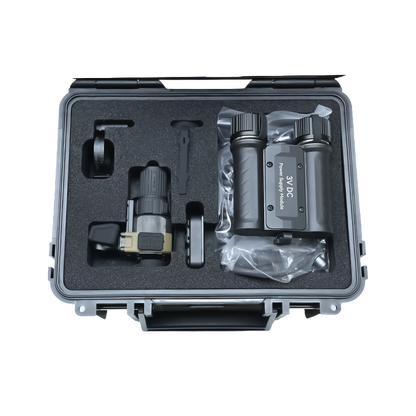

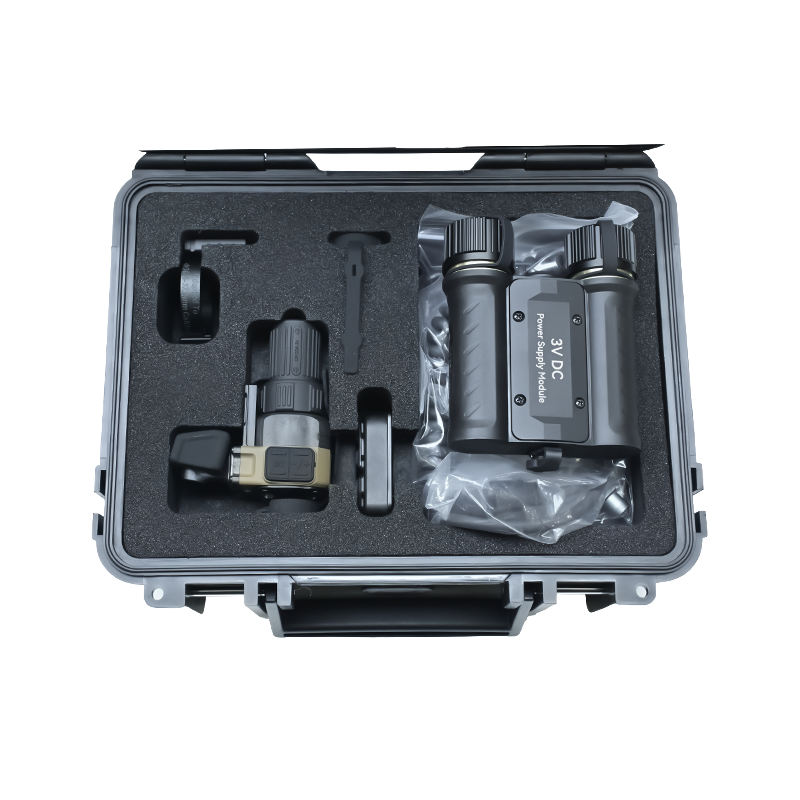

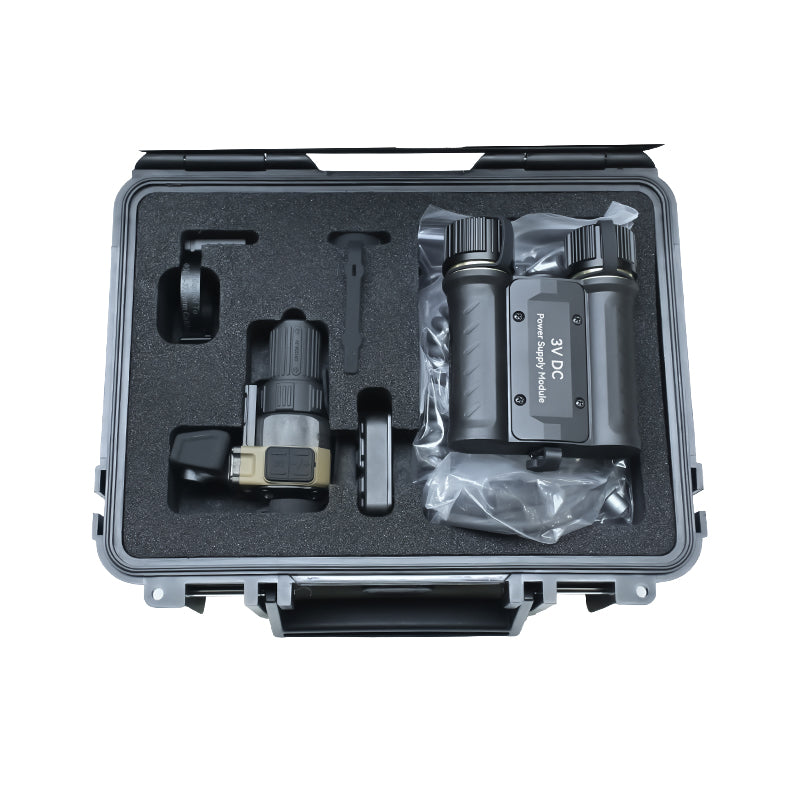

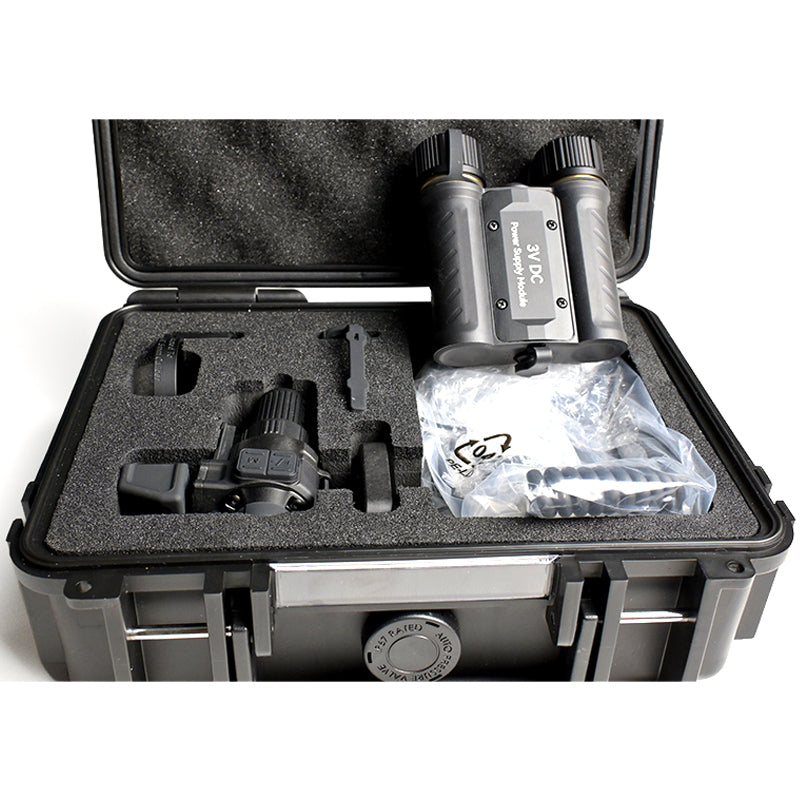

1×CR123A Battery (Optional Battery Pack)
Minimum Fusion Distance
10m
Operating Temperature
-40°C to +60°C
Weight
80g (w/ Battery), 65g (w/o Battery)
Dimension
86(L)×65(W)×40(H)mm
IP Rating
IP67
Bluetooth Remote Control
2.4G
Compatibility
PVS-14 (RNVG, DTNVS, 1431), L3Harris BNVD (PVS-31A and GPNVG)
