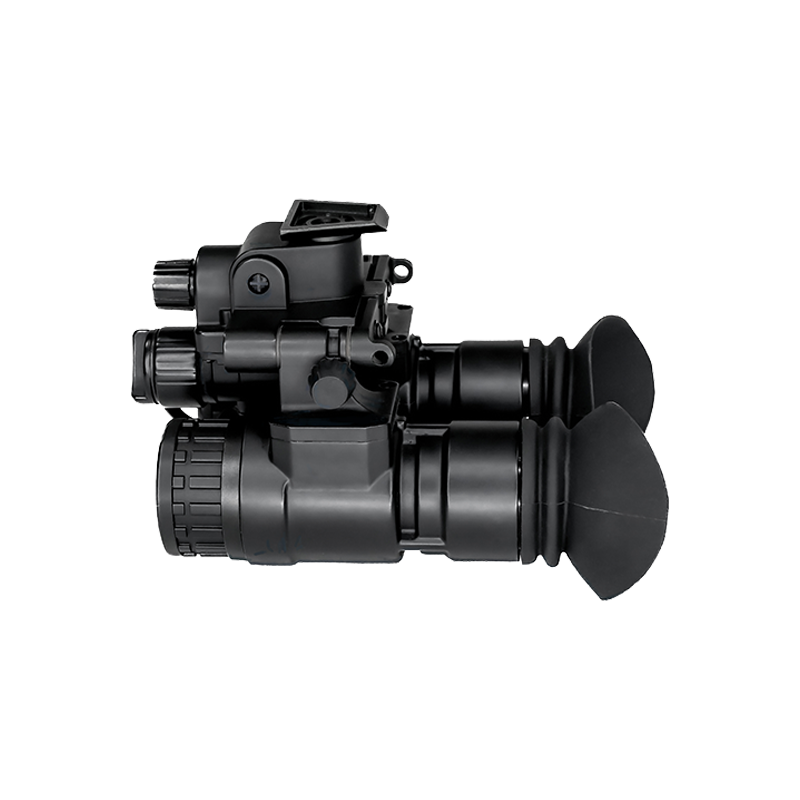

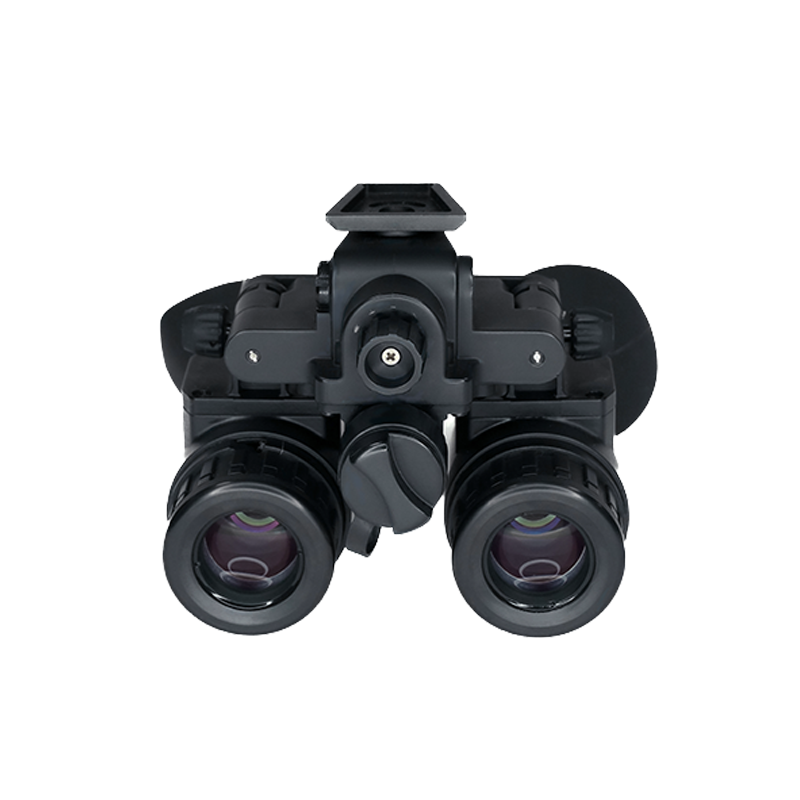

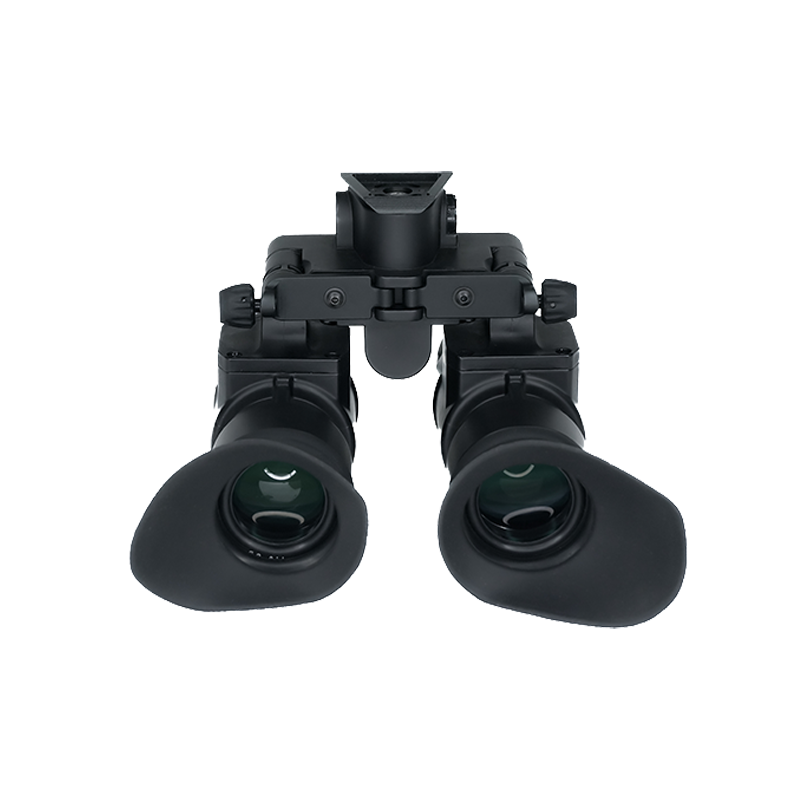

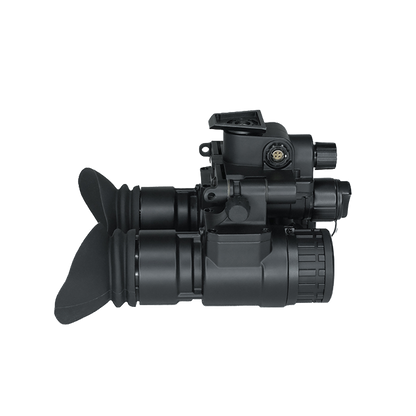

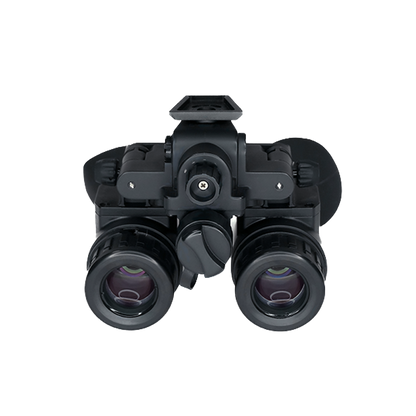

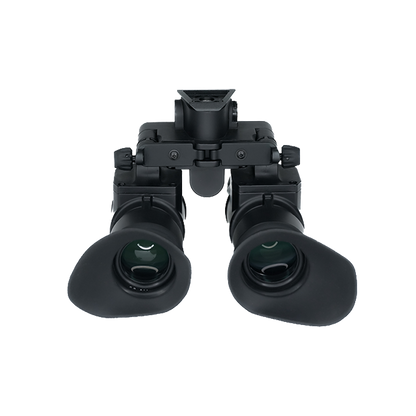

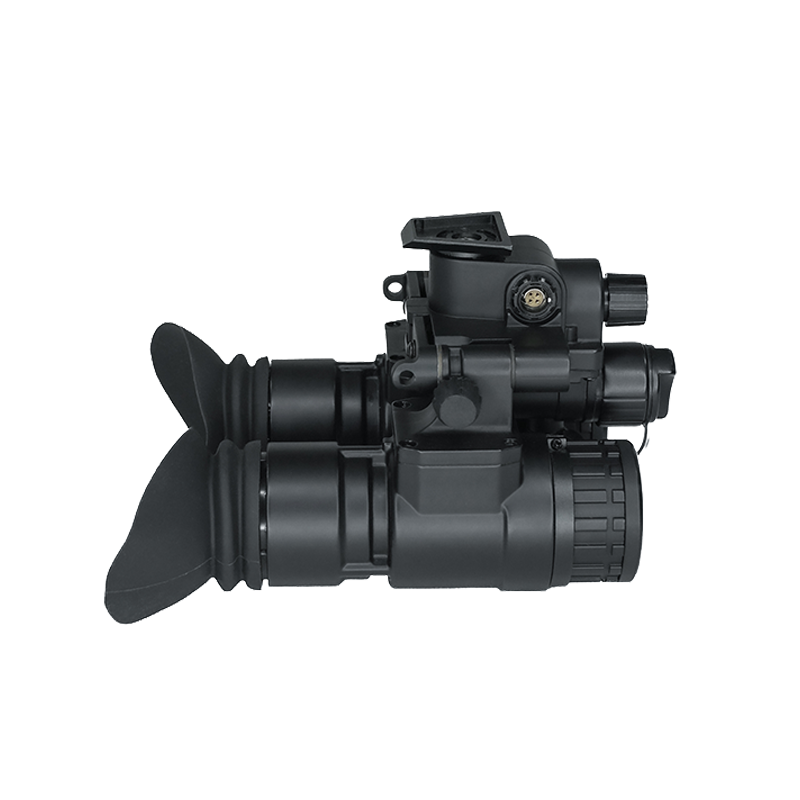

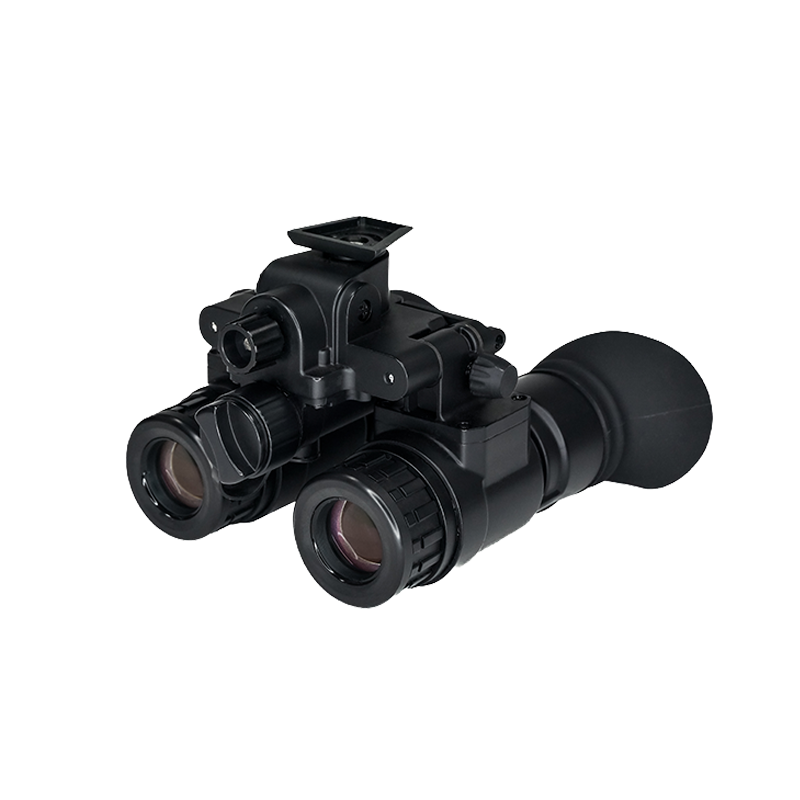

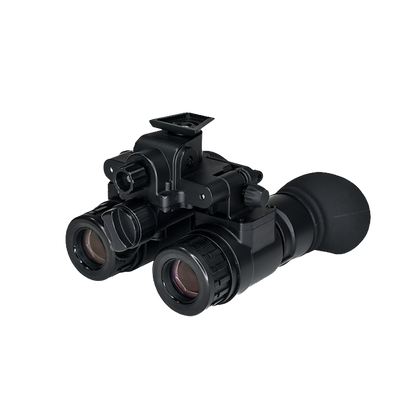

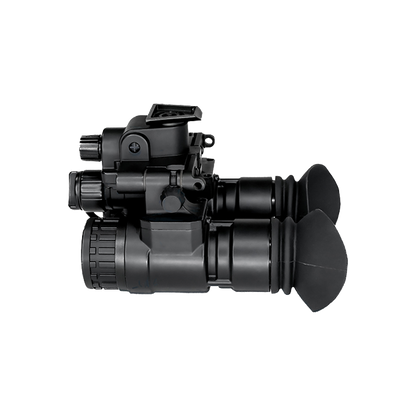

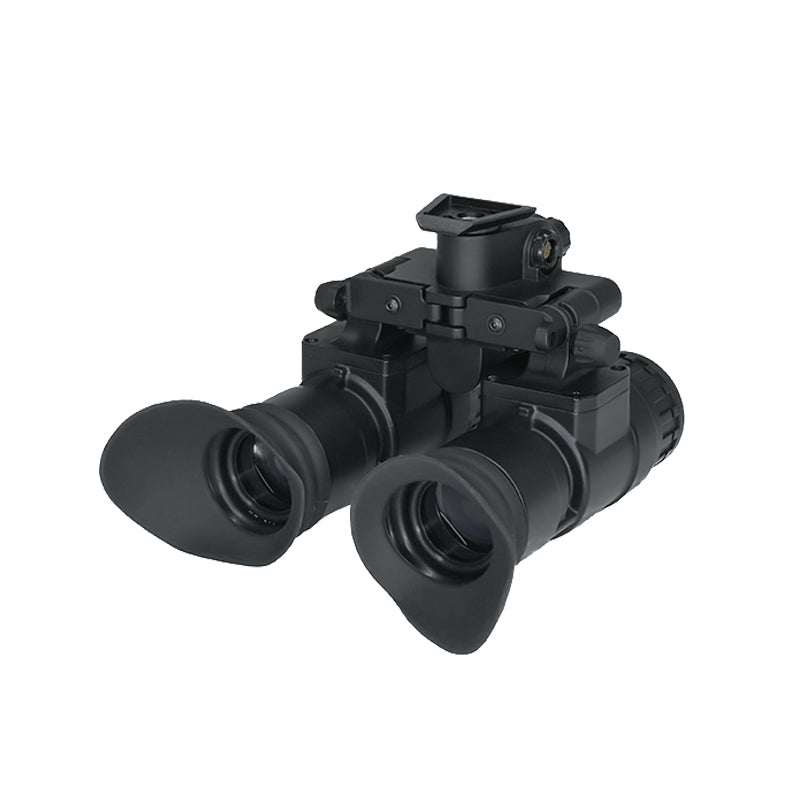

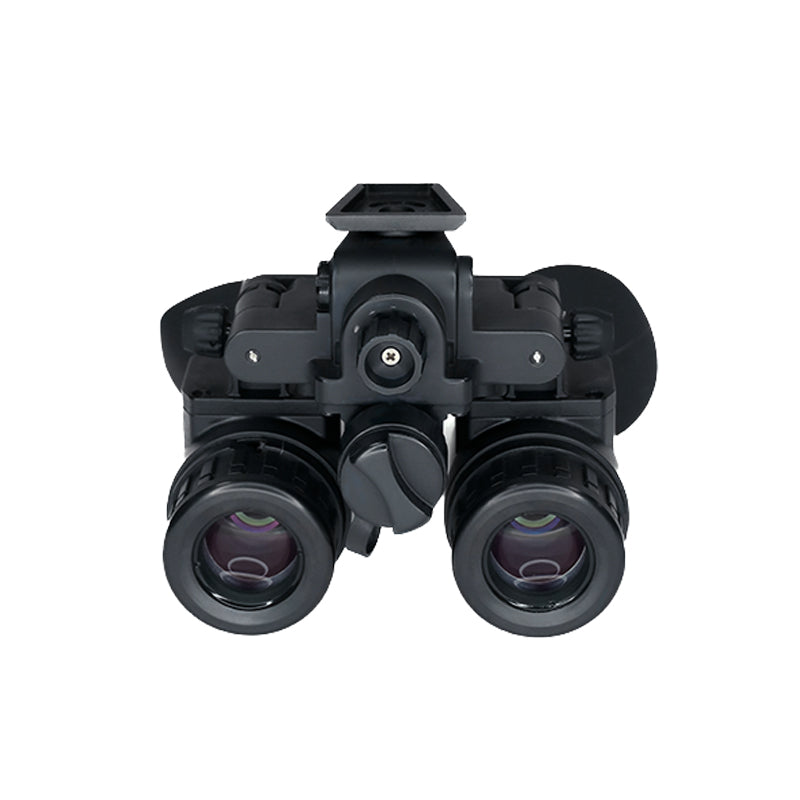

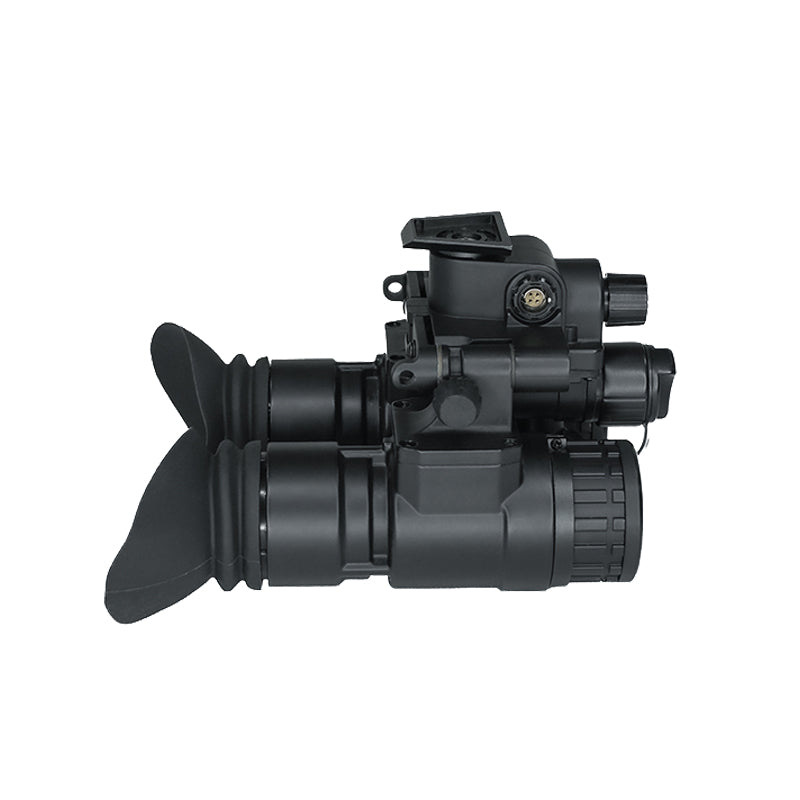

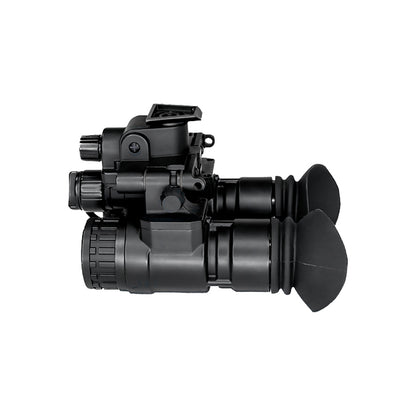

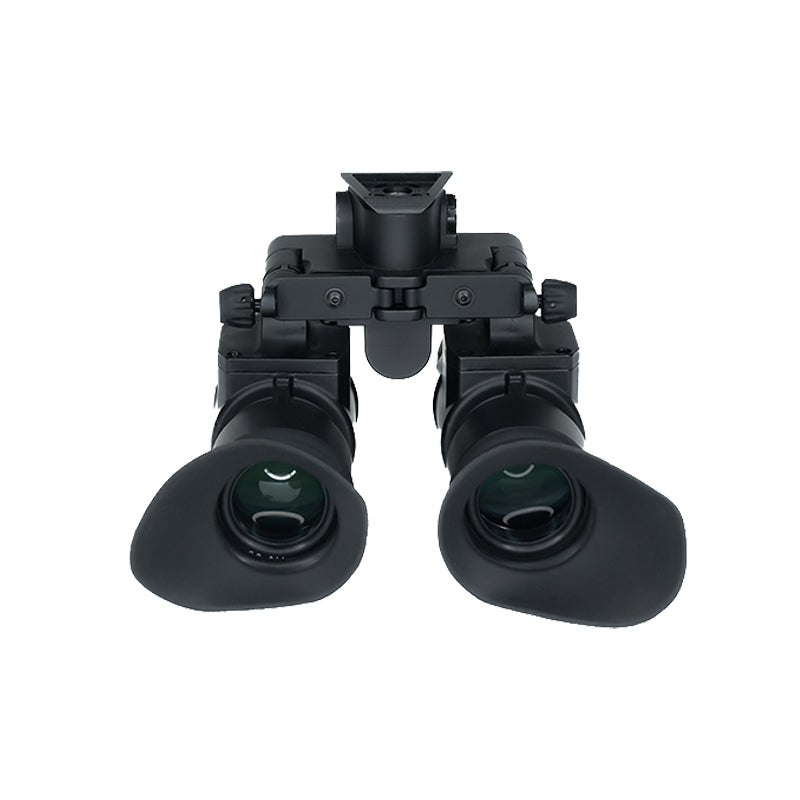

VantaX-31A Night Vision Goggles
VantaX-31A Night Vision Goggles
Couldn't load pickup availability
VantaX-31A is a high-performance night vision binocular goggle, specifically engineered for professional operators demanding reliable optical performance, structural durability, and a low-profile form factor. The device's construction adopts a reinforced PEEK housing, ensuring both intrinsic ruggedness and minimal device weight. It is designed to enhance situational awareness during nighttime activities. This system integrates safety and operational mechanisms, including automated flip-up ON/OFF (optional), IPD stop, bright light protection, and built-in IR illuminator. The device operates with one single AA battery and can also be powered using an external battery pack with a 4-pin Fischer connector.
Key Features
High-performance PEEK housing
Lightweight and compact
Built-in IR illuminator
Bright light protection
Dual-tube situational awareness
Specifications：
| Image Intensifier Tube | ||
| Image Intensifier | Gen2+ | |
| Image color | Green/White (Optional) | |
| Autogating | Yes | |
| FOM | 1800+ | |
| Operational Life | ≥ 10000h | |
| Automatic Brightness Control | Yes | |
| Automatic High Light Cut-off | Yes | |
| Built-In IR Illuminator | Yes | |
| Optical parameters | Optical Magnification | 1×±0.05× |
| Field of View | 40° Standard Version | |
| Eyepiece Diopter | -0.5 Standard (+2.0 to -2.0 with optional diopters) | |
| Diopter lens configuration | Fixed | |
| Focusing Range | 0.25m-Infinity | |
| Pupil exit diameter | ≥26mm | |
| Distance between pupils | ≥30mm | |
| Focusing method | Manual | |
| Interpupillary Adjustment Range | 50-80mm | |
| Electrical | Flip-up shutdown | Yes (Optional) |
| Control mode | OFF,ON,IR,AUTO | |
| Battery Type | AA Battery | |
| Continuous Working Hours | 25~100h | |
| Physical | Dimensions(mm) | 128×100×80mm |
| Weight | ≤500g | |
| Waterproof | IP67 |
