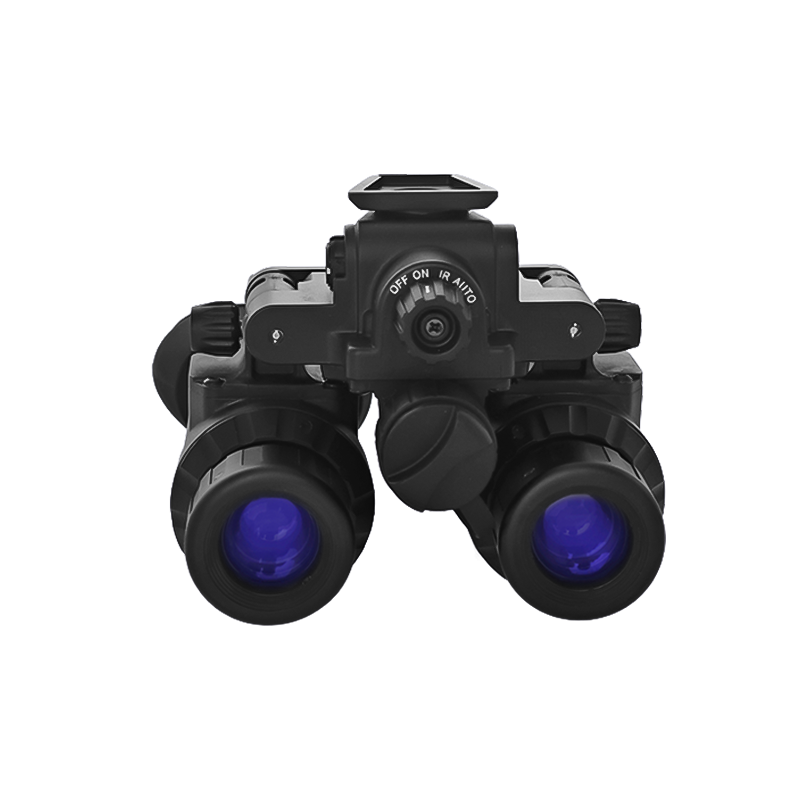

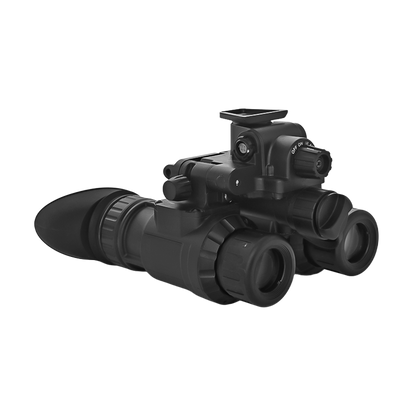

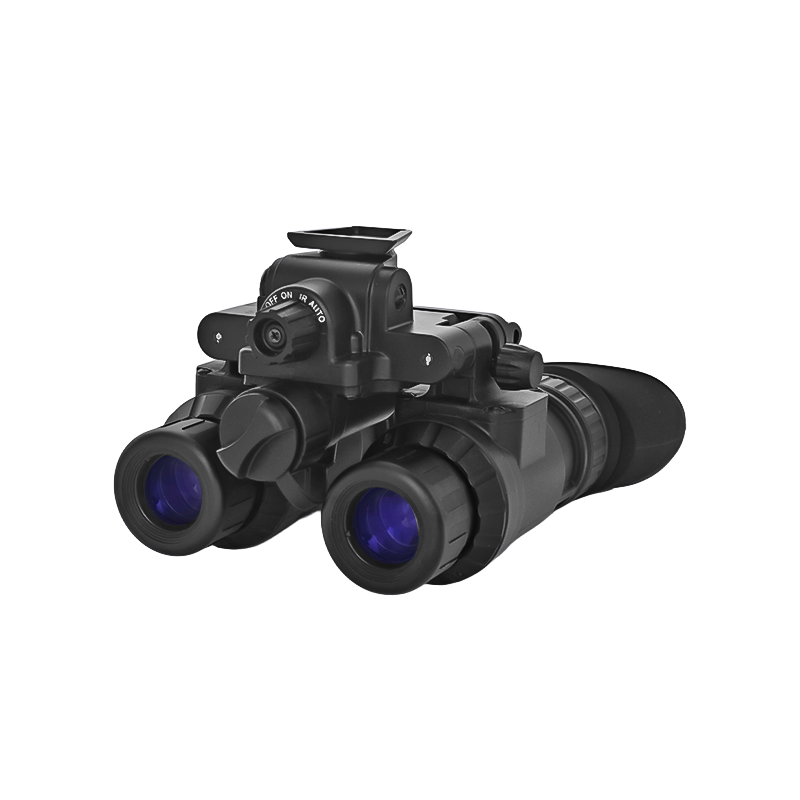

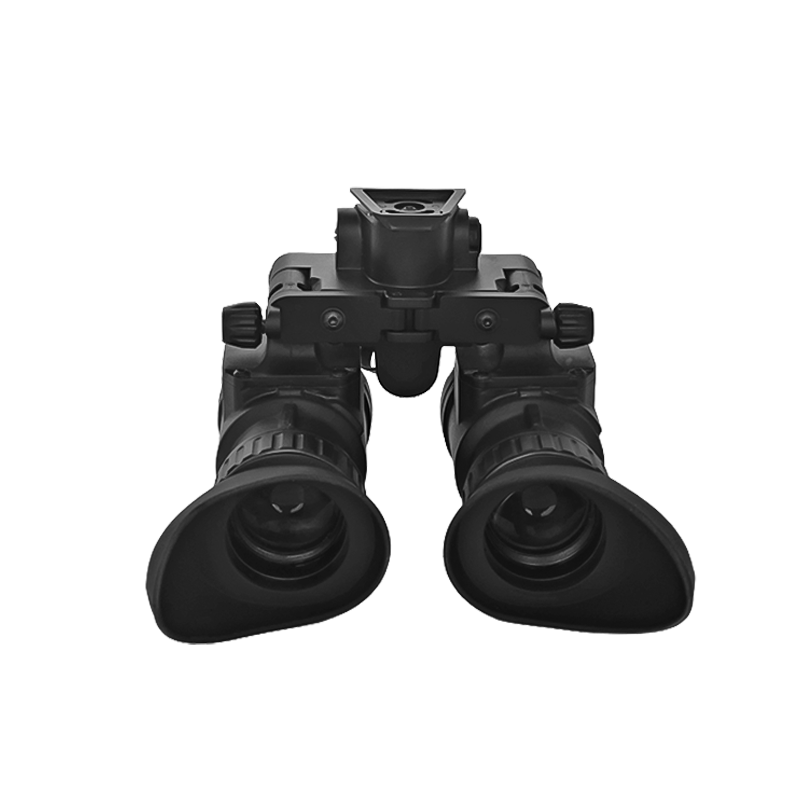

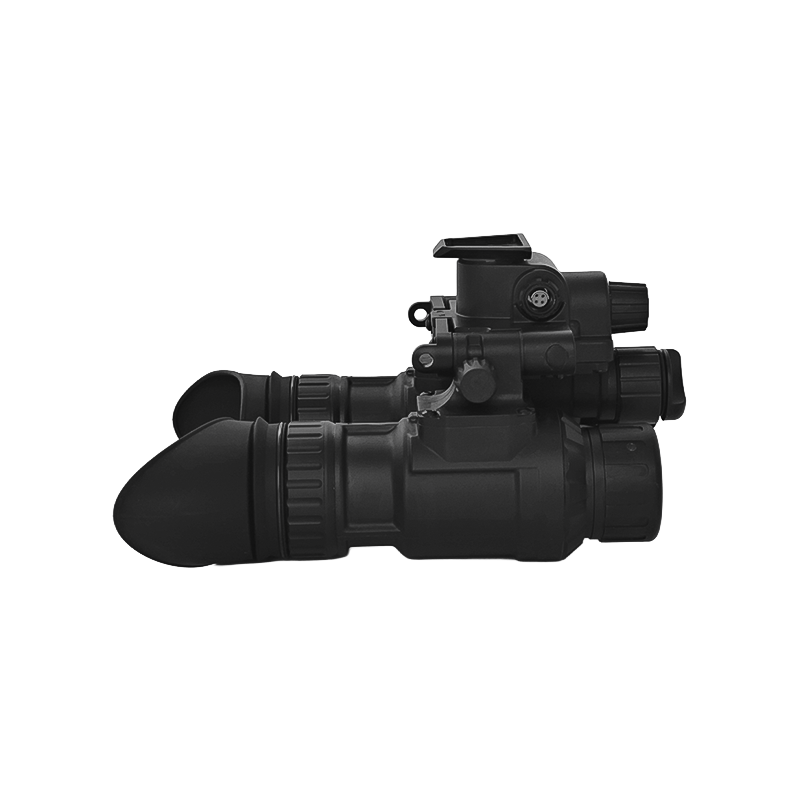

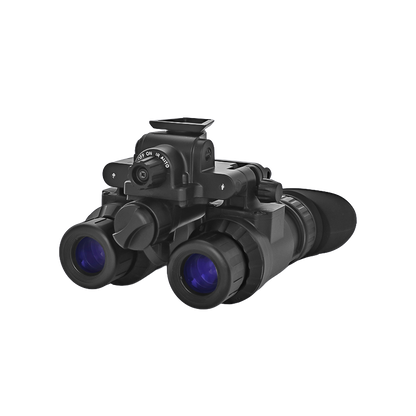

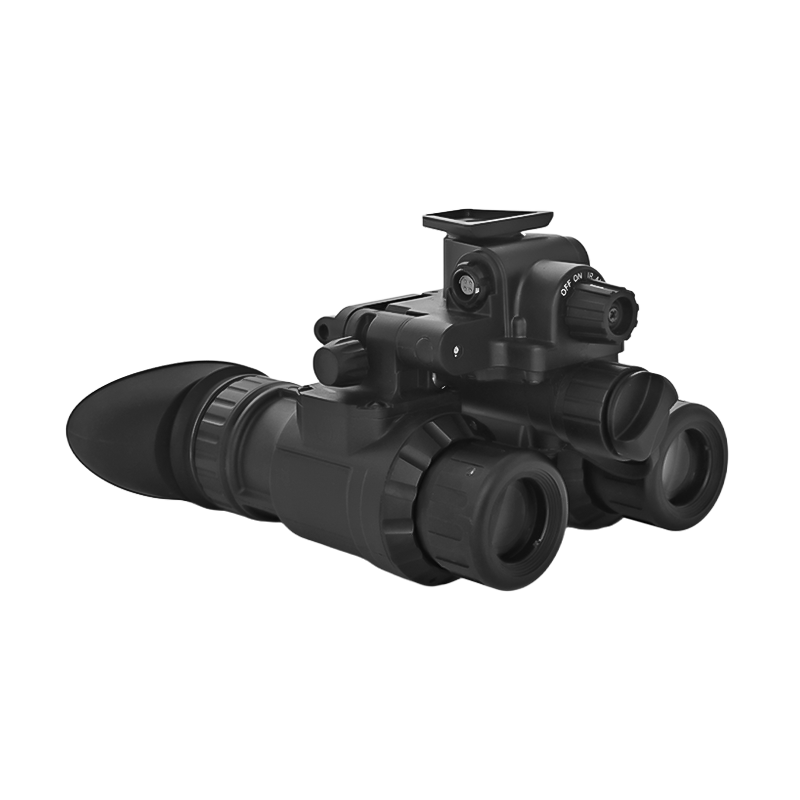

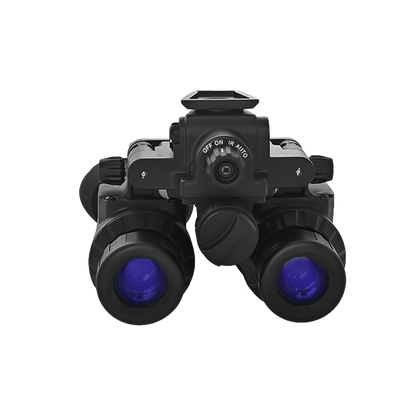

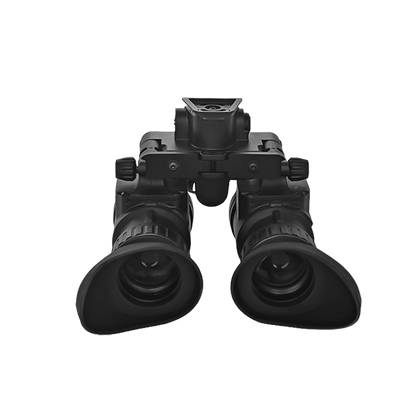

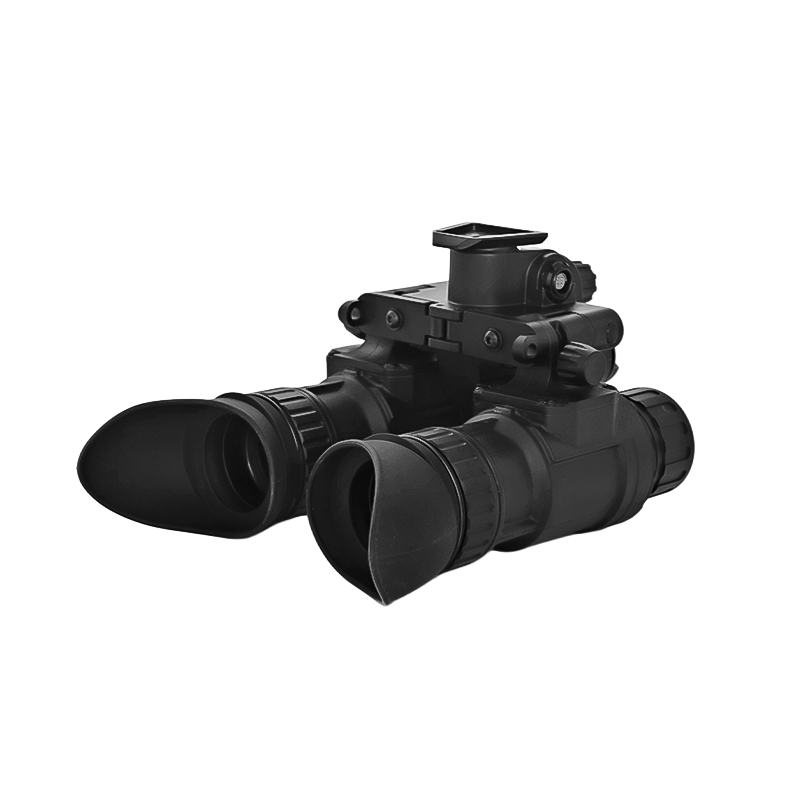

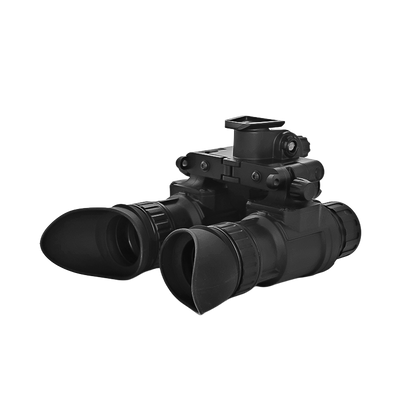

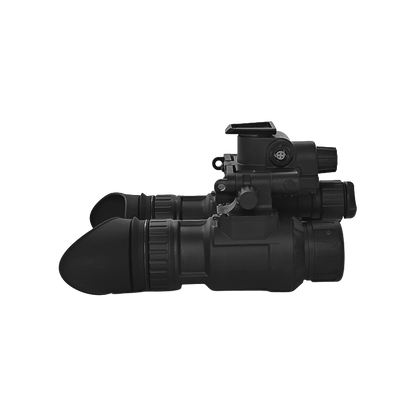

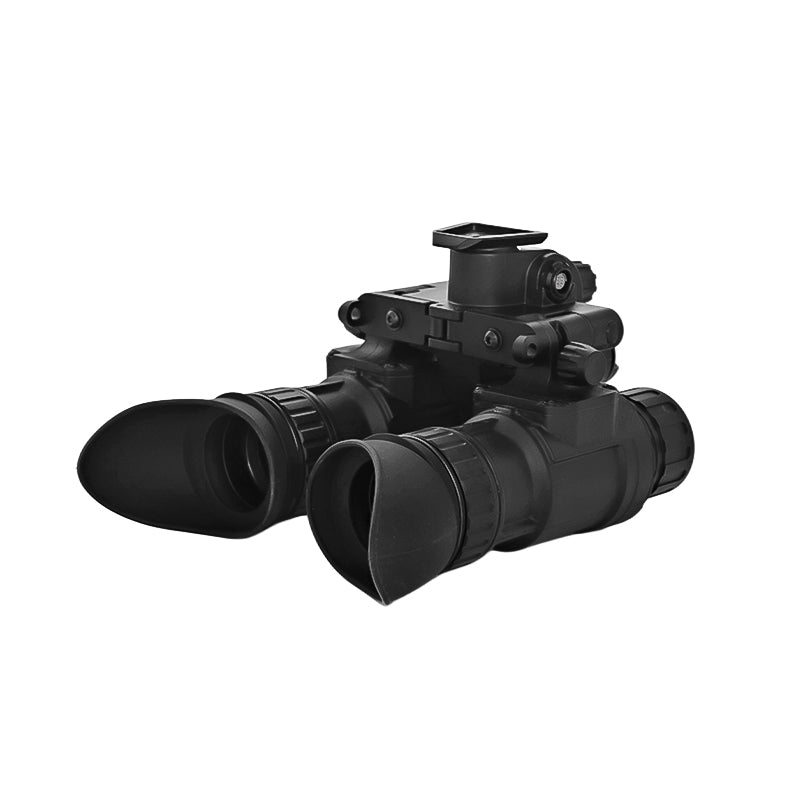

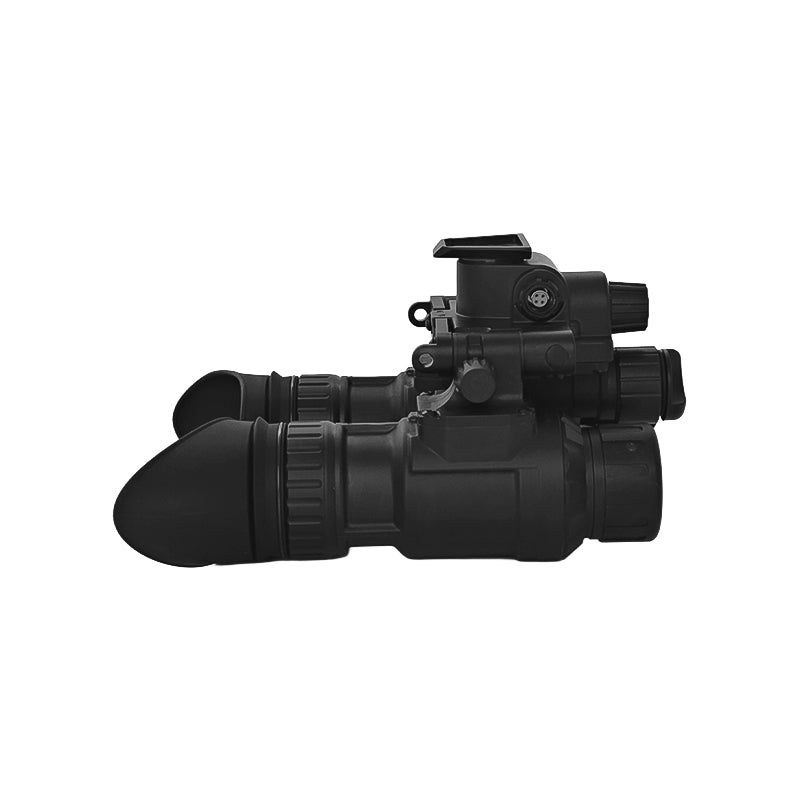

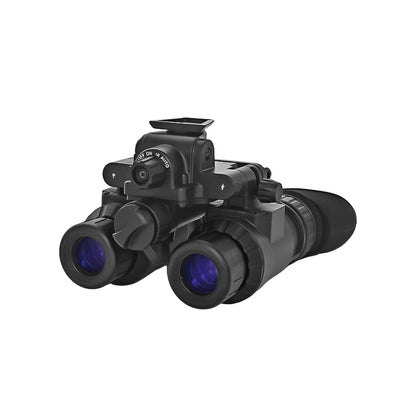

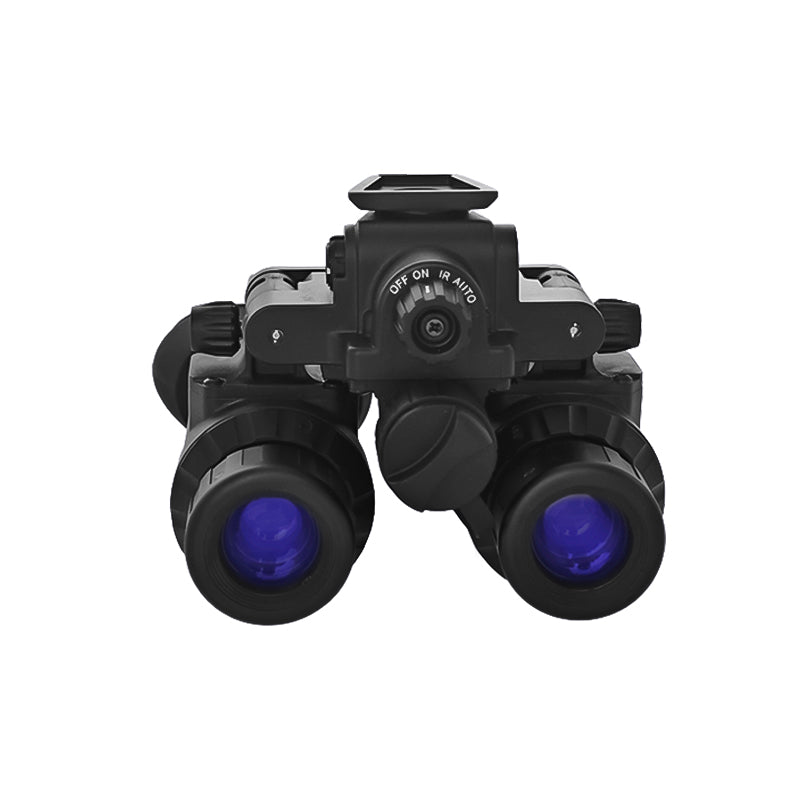

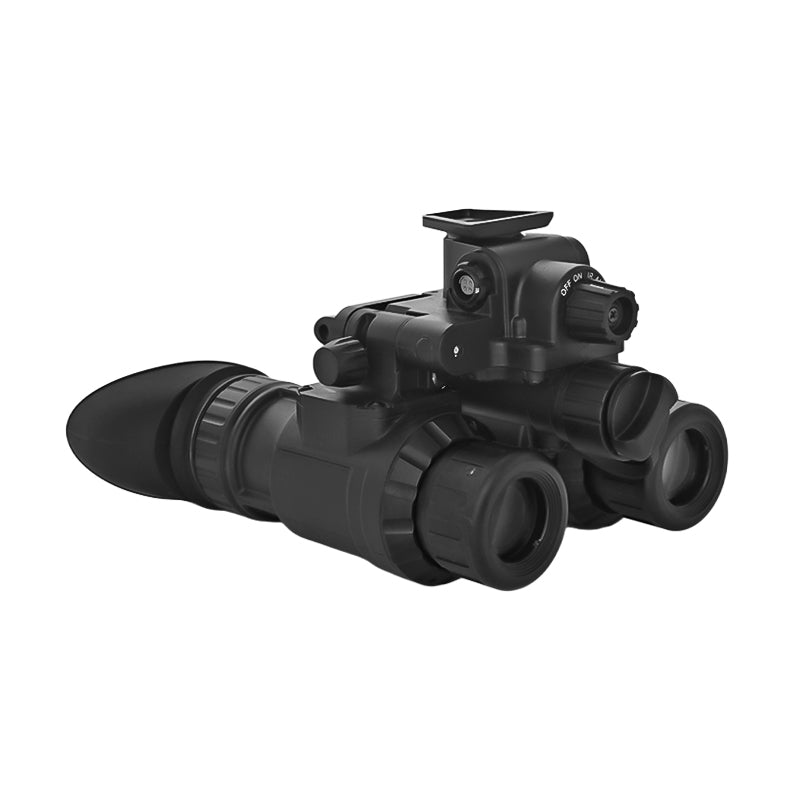

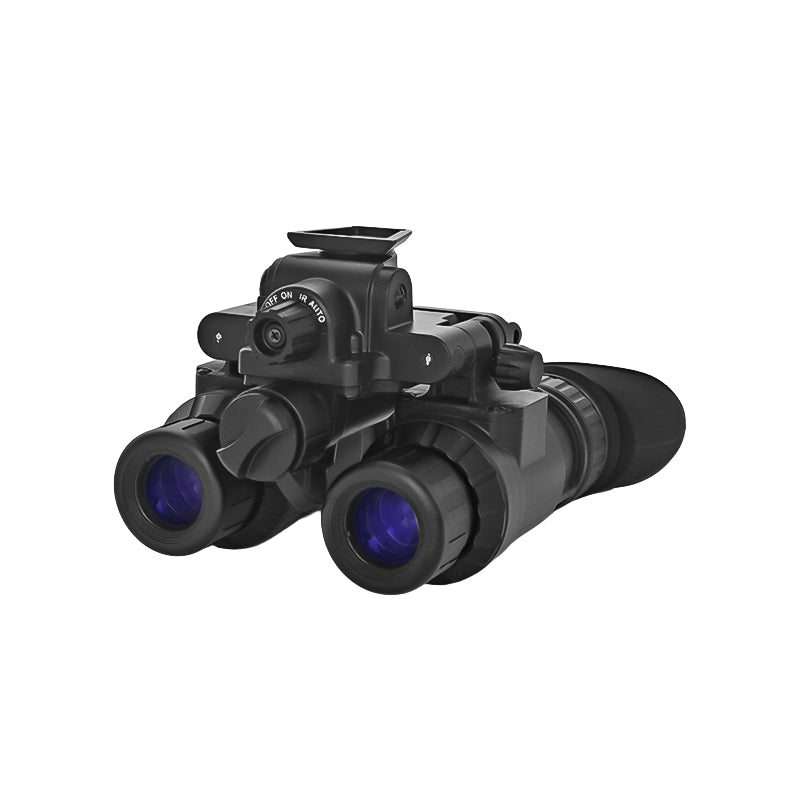

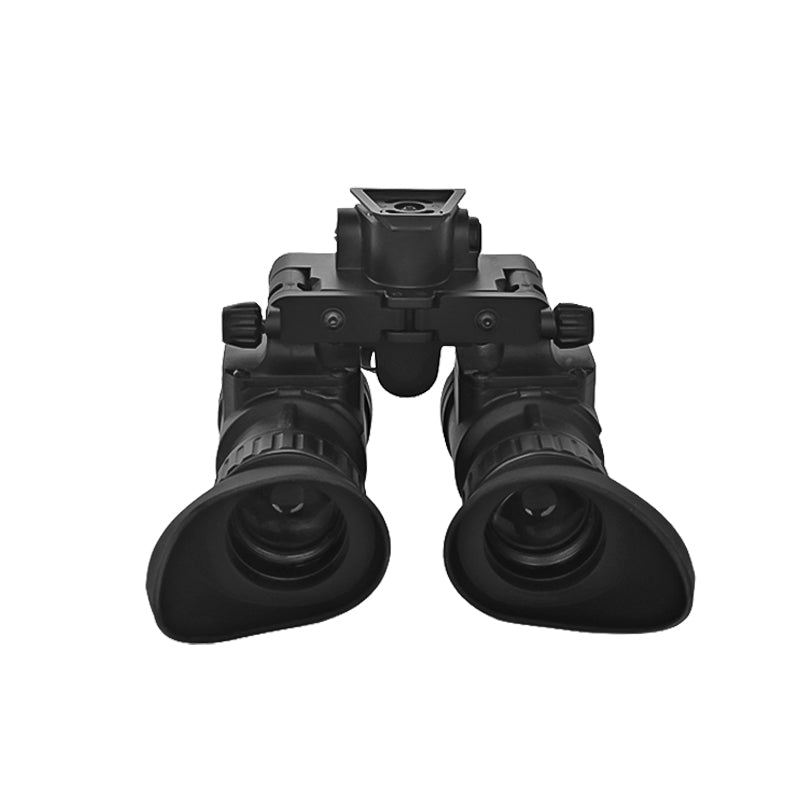

VantaX-31R Night Vision Goggles FOV50°
VantaX-31R Night Vision Goggles FOV50°
Couldn't load pickup availability
VantaX-31R is a multi-functional night vision binocular designed for users who benefit from an expanded field of view. The device utilizes a reinforced PEEK housing. This 50° FOV provides a visibly wider viewing area compared to more common 40° devices. VantaX-31R is configured to support tubes with various FOM and includes several operational necessities such as a built-in IR illuminator and bright light protection. The system supports direct control features like flip-up ON-OFF, diopter adjustment, and Interpupillary Distance (IPD) adjustment, all contributing to its utility for night situational awareness.
Key Features
50° wide field of view
High-performance PEEK housing
Built-in IR illuminator
Bright light protection
Flip-up ON/OFF
Specifications:
| Image Intensifier | Gen2+ |
| Autogating | Optional |
| FOM | 1400+/1600+/1800+/2000+ (Optional) |
| Optical Magnification | 1X |
| Field of View | 50° |
| Dioptre Adjustment Range | +5/-5 |
| Lens specification | F1.2, 25mm |
| Optical Coating | Multilayer composite broadband super-vacuum ion-permeable membrane |
| Objective Adjustment Range (m) | 0.25--∞ |
| Bright Light Protection | Yes |
| Flip-up shutdown | Yes |
| Dimensions (mm) | 130×105×80mm |
| Weight | 530g |
| Battery Type | AA |
| Continuous Working Hours | 20h |
| Operating Temperature Range | -40/+50℃ |
