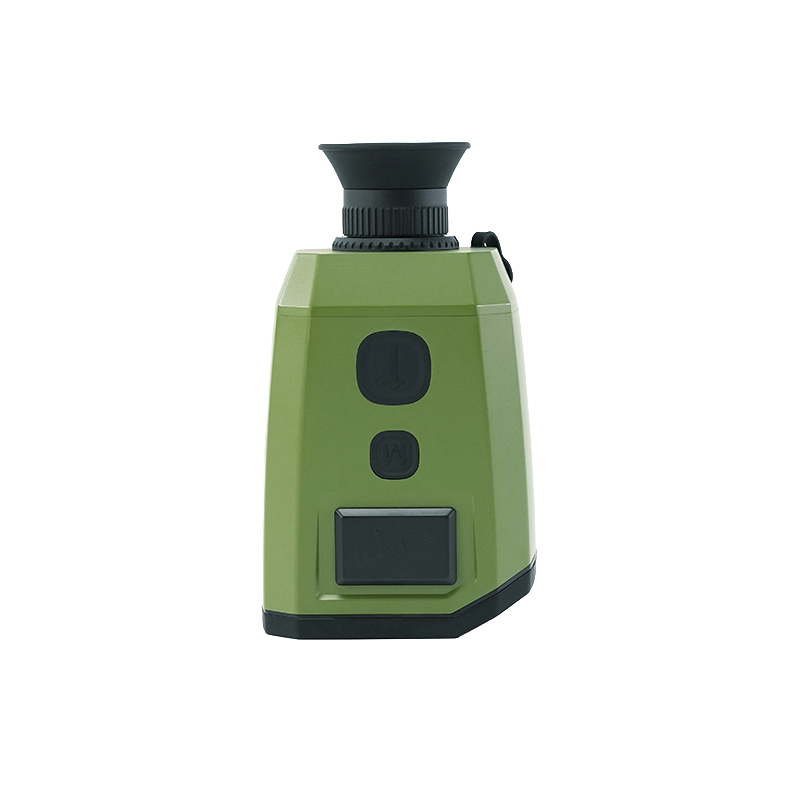

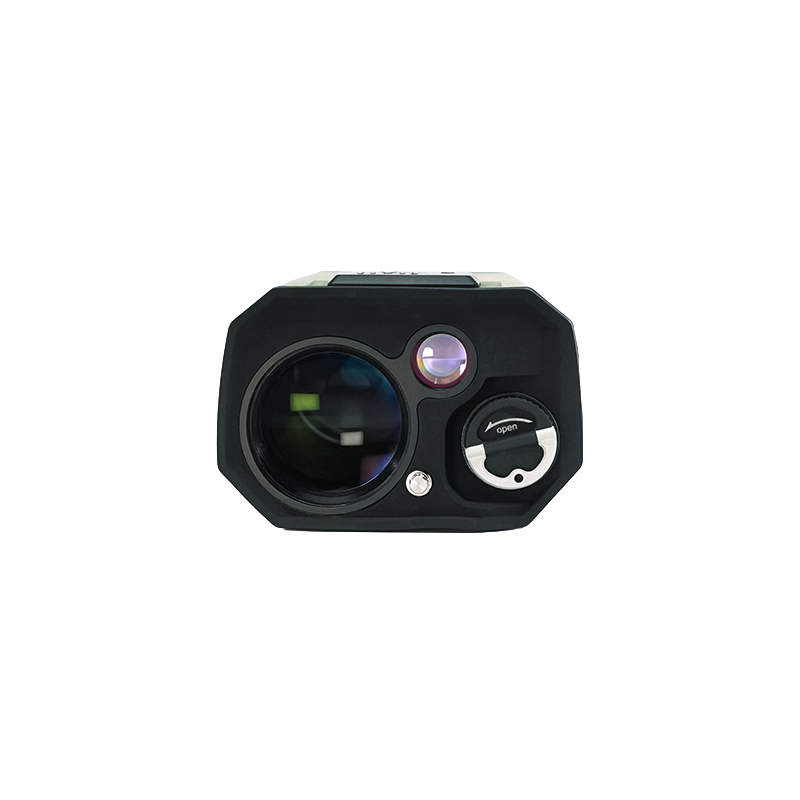

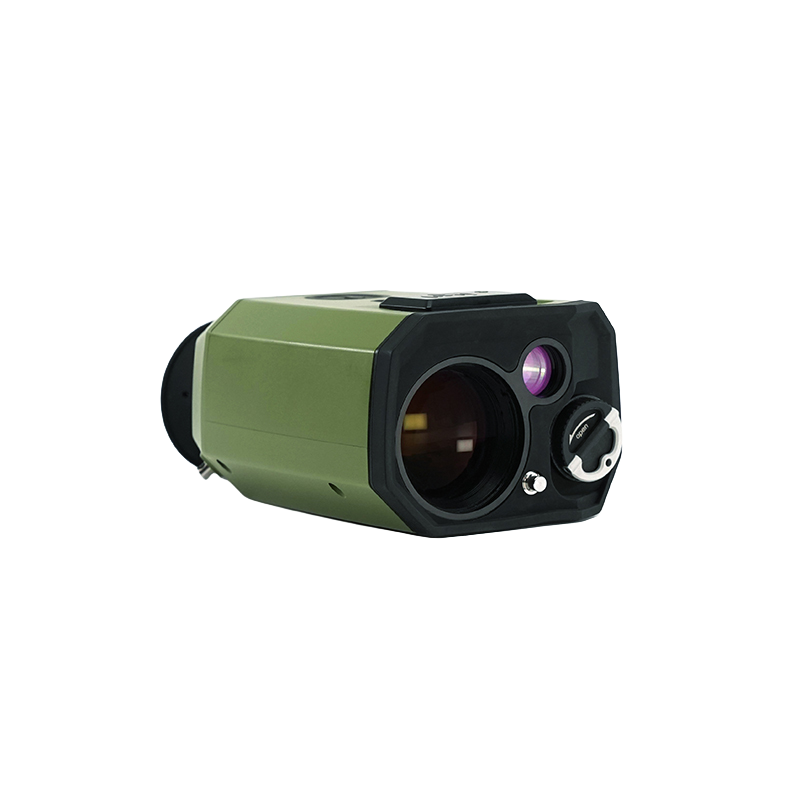

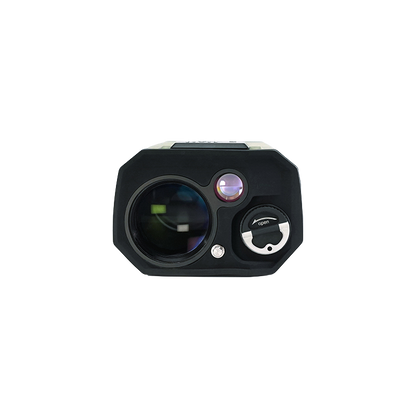

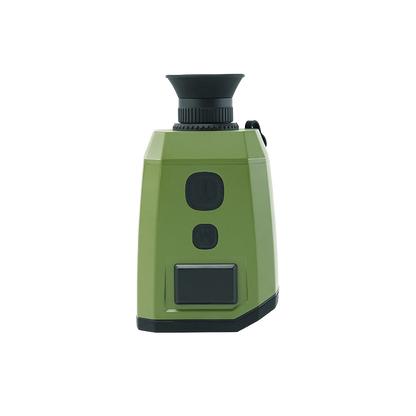

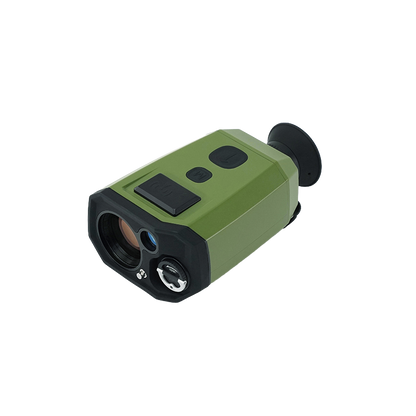

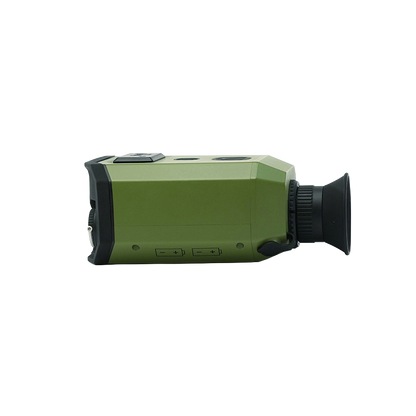

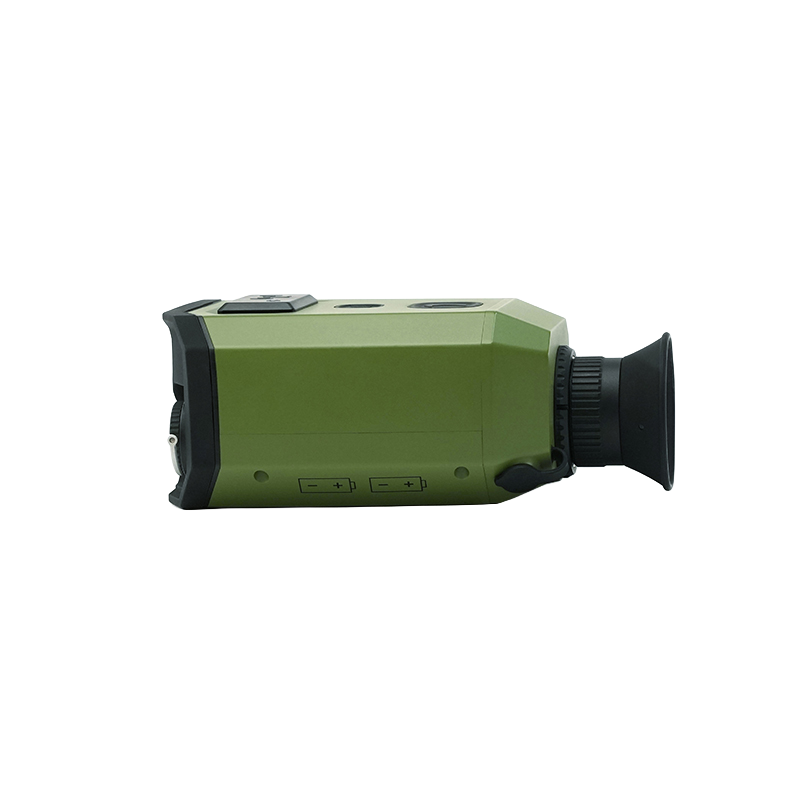

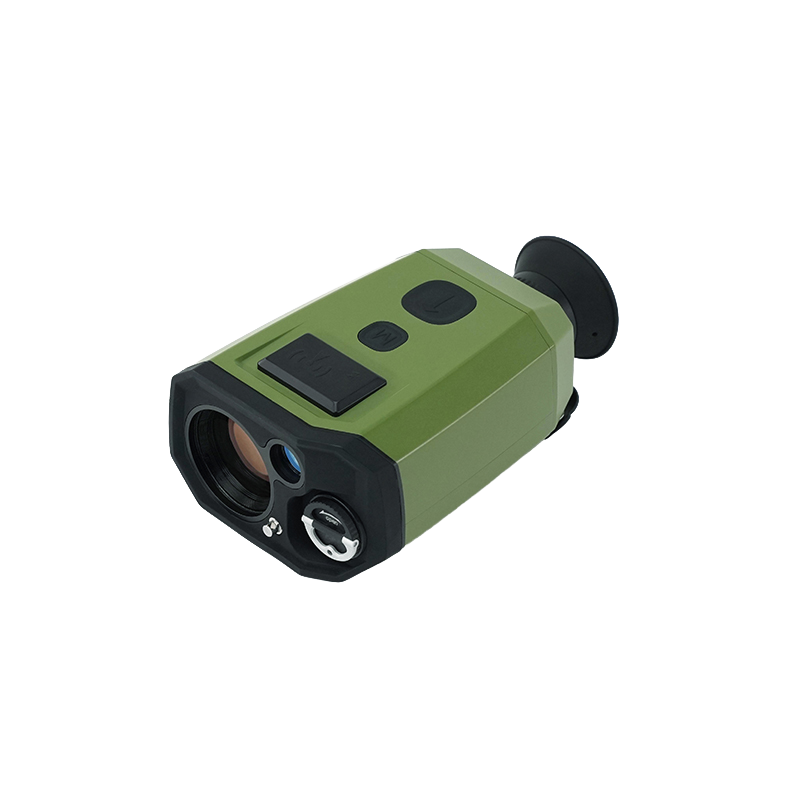

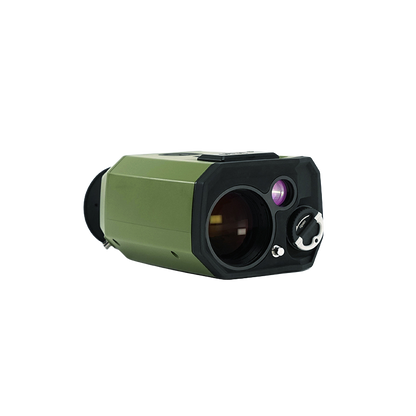

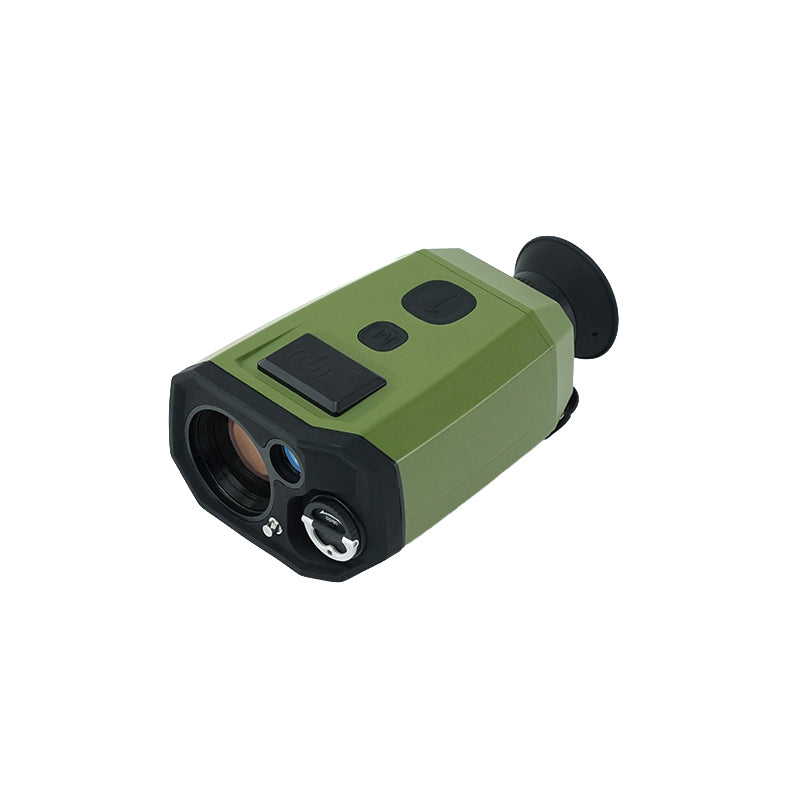

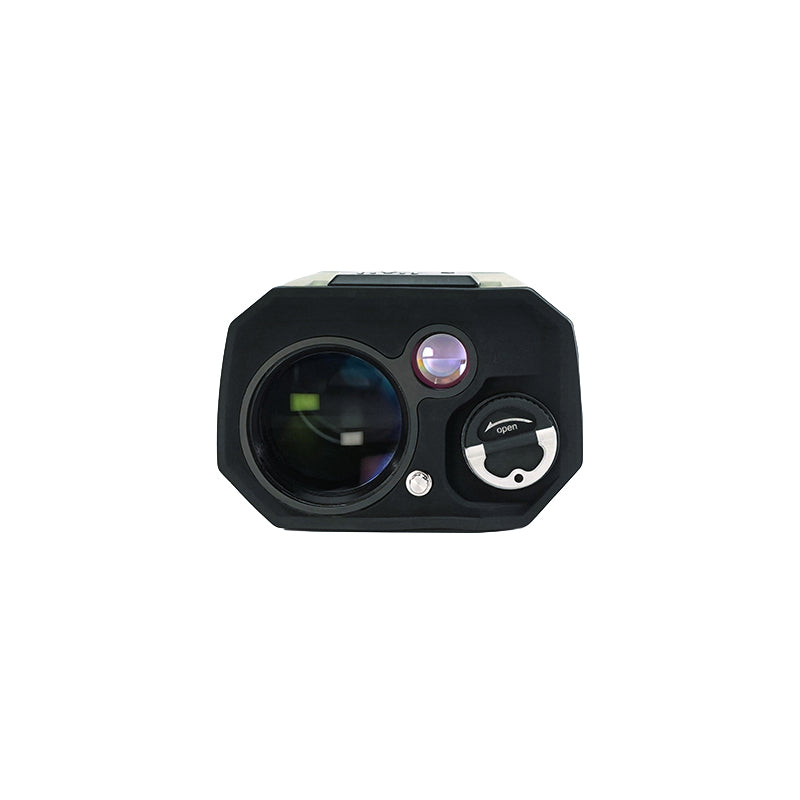

KONG-X Series Handheld Laser Rangefinder
KONG-X Series Handheld Laser Rangefinder
Regular price
$1,769.00
Regular price
Sale price
$1,769.00
Quantity
Couldn't load pickup availability
The KONG-X series rangefinders are developed specifically for tactical scenarios, overcoming the drawbacks of cumbersome operation and inaccurate measurement of conventional devices. Integrated functions include remote observation, rangefinding, angle measurement, height measurement, target positioning, and ballistic calculation, with Bluetooth and APP operation supported.
Key Features
Precise target rangefinding capability
Robust and multiple system functions
Multiple connectivity options
Pocket-sized portable design
Specifications:
| Optical Channel | |
| Magnification | 7× |
| Objective diameter | 32mm |
| FOV | 6° |
| Reticle | Etched Mil Reticle (Adjustable Brightness) |
| Laser Rangefinder | |
| Laser Type | 1535nm/Class1/Eye-safe |
| Range Capability | 20~6000m |
| Accuracy | ±1m |
| Divergence | 0.3mrad |
| Range freq | 3Hz |
| Detection | ≥98% |
| Digital Magnetic Compass | |
| Azimuth Accuracy (RMS) | ±1° |
| Inclination Accuracy (RMS) | ±1° |
| Internal GPS Receiver | |
| Positioning Mode | BD+GPS+GLONASS+Galileo |
| Horizontal Accuracy (CEP) | 5m |
| Elevation Accuracy (PE) | 10m |
| Advanced Functions | |
| Measurement | First & Last Target, Distance Gating, Multi-target |
| Ballistic Calculation | ✓ |
| Fall Of Shot | ✓ |
| Others | |
| Screen | AMOLED |
| Eyepiece | |
| Diopter | -5 ~ +5D |
| Physical | |
| Dimensions (W × H × D) | 141mm×81mm×53mm |
| Weight | ≤430g (including battery) |
| Power Supply | |
| Battery Type | 2 × CR123A/16340 |
| Battery life | >5000 Times |
| Interfaces | |
| External Power Supply | 5~12V DC |
| Wired Data | Uart (TTL_3.3V) to USB |
| Wireless | Bluetooth®5.3 |
| Environmental | |
| Immersion | IP67 |
