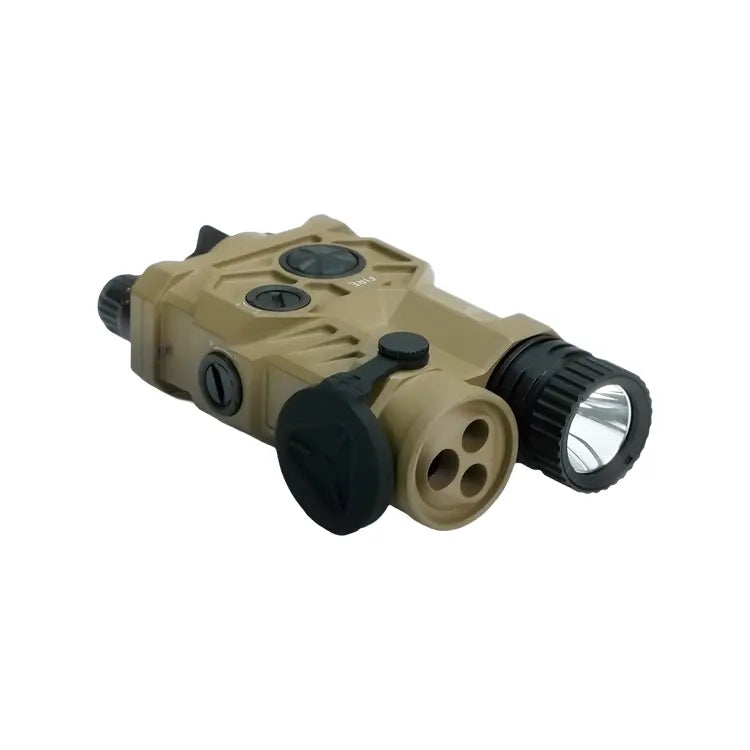

GODZILLA-LP4 Four-in-One IR Laser Sight
GODZILLA-LP4 Four-in-One IR Laser Sight
Couldn't load pickup availability
The LP4 integrates visible green laser, infrared laser, VCSEL infrared lighting, and tactical high lighting. It features an effective long operational range and achieves seamless coordination with night vision devices. Coaxial calibration is implemented with synchronous zeroing capability available.
Key Features
Four-in-one laser system – It integrates visible laser, infrared laser, IR fill-in light and LED lighting.
VCSEL IR fill-in light – It adopts VCSEL technology for clear infrared spot adjustable brightness, and uniform fill light.
3,500 m ultra-long-range infrared laser – When matched with a night vision device, its infrared laser beam range reaches up to 3,500 m.
Compact and lightweight design – It features a low center of gravity (COG) for rail mounting with a weight of approximately 230 g.
Specifications:
| Visible Laser | |
| Output Power | 10mW |
| Safety Class | Class 3B |
| Divergence | 0.5 (+0.3) mrad |
| Wavelength | 520nm (Green) or 650nm (Red) |
| IR Laser | |
| Output Power | 30mW |
| Safety Class | Class 3B |
| Divergence | 0.5 (+0.3) mrad |
| Wavelength | 820nm or 850nm |
| IR Illuminator | |
| Output Power | 30mW |
| Safety Class | Class 3B |
| Divergence | 45 ~140 mrad |
| Wavelength | 820nm or 850nm |
| LED Illuminator | |
| Output | >100 lm |
| Range Performance | |
| Detection Range | 3500m without obscurants |
| Aim Adjustment | |
| Elevation / Windage click value | 0.25 MIL |
| Adjustment Range | ±20 MIL |
| Physical | |
| Dimensions (W × H × D) | 105mm×58mm×37mm |
| Weight | 230g (Device), 27g (LED Illuminator) |
| Power Supply | |
| Battery Type | 1 × CR123/CR123A |
| Environmental | |
| Shock Resistance | 1000g |
| Immersion | IP68 (Device) / IP67 (Device + Remote Switch) |
