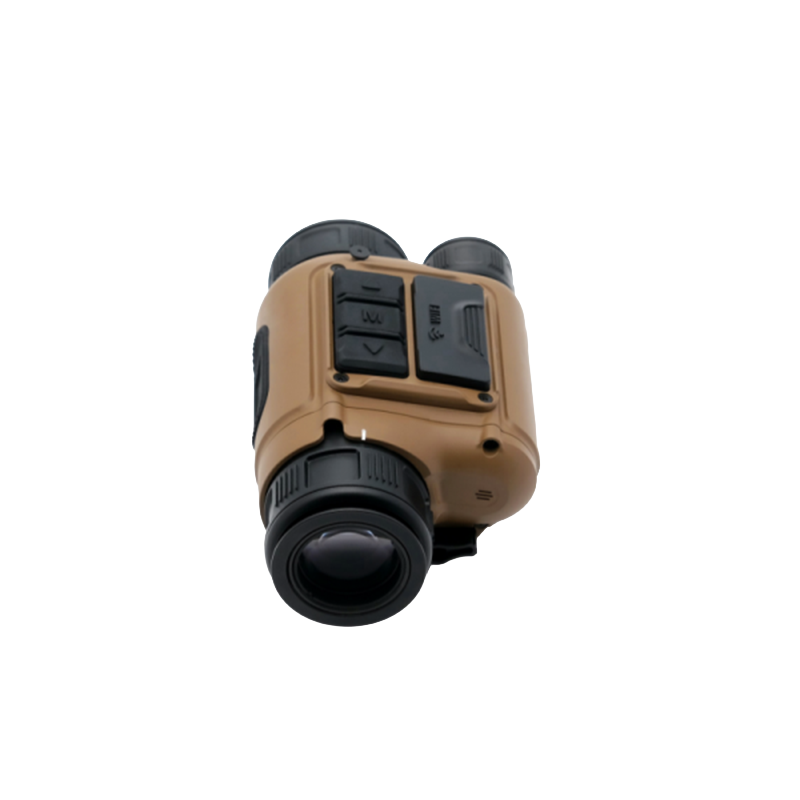

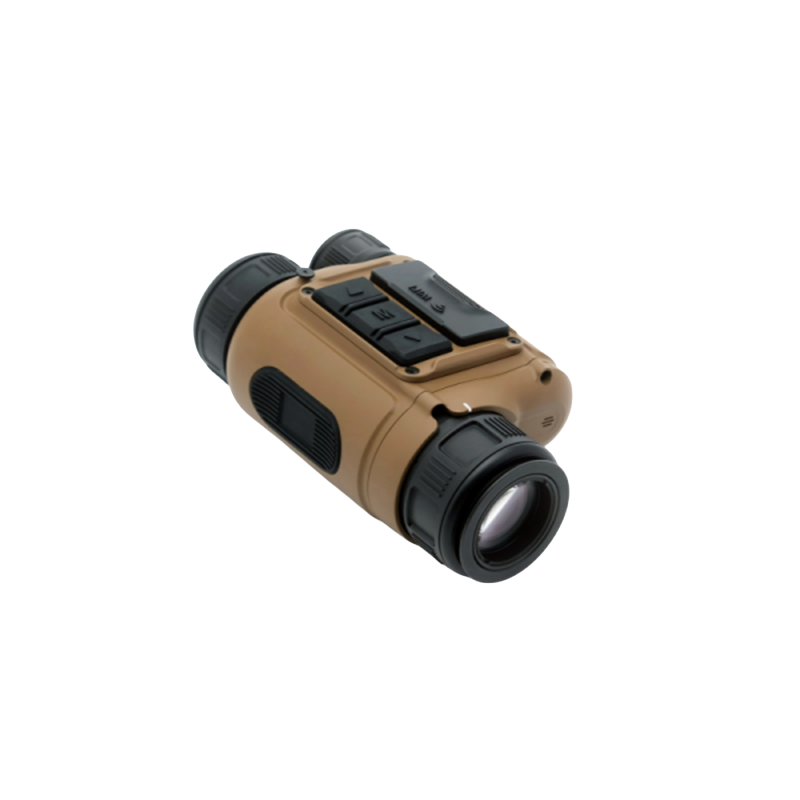

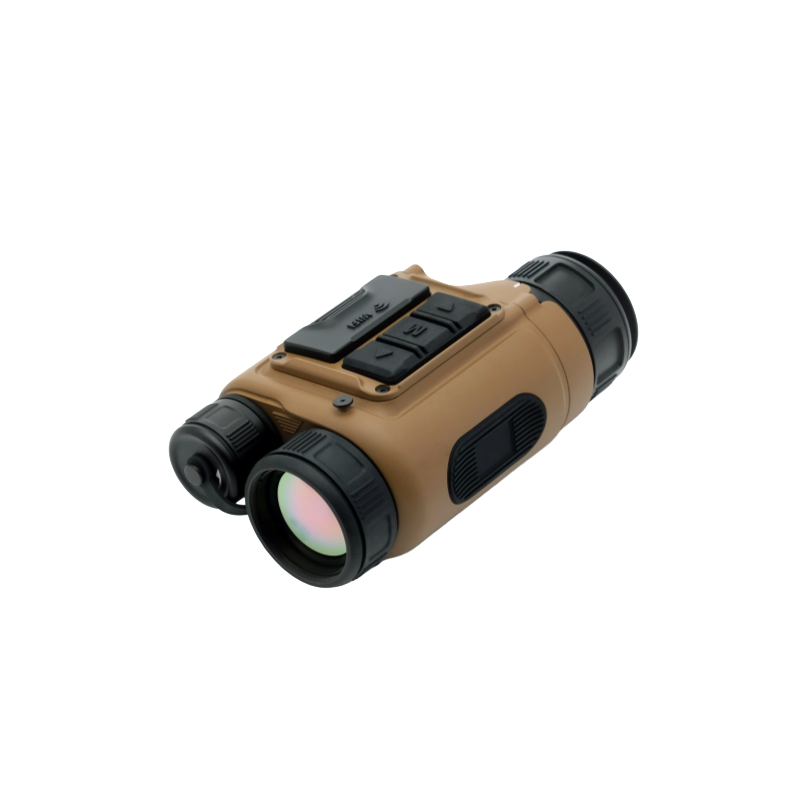

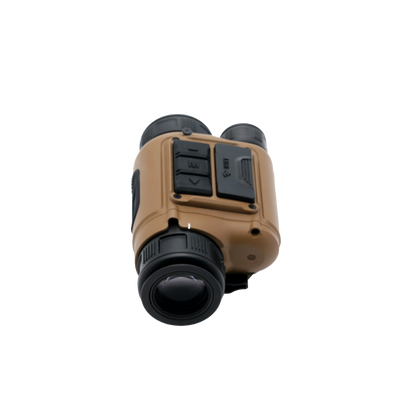

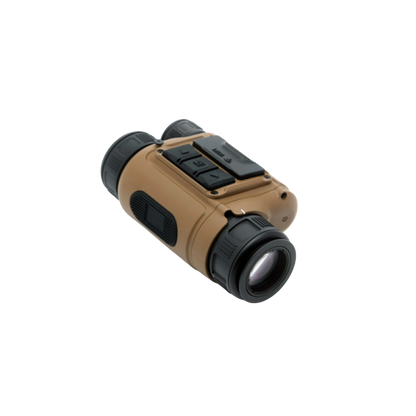

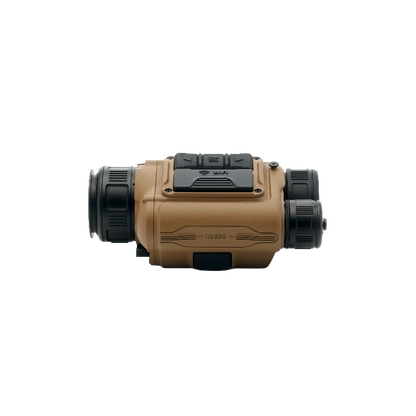

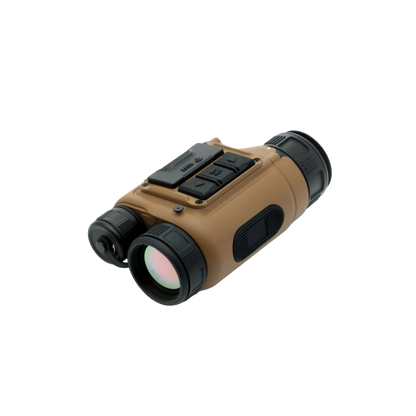

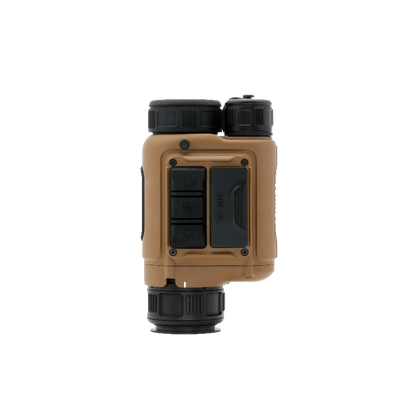

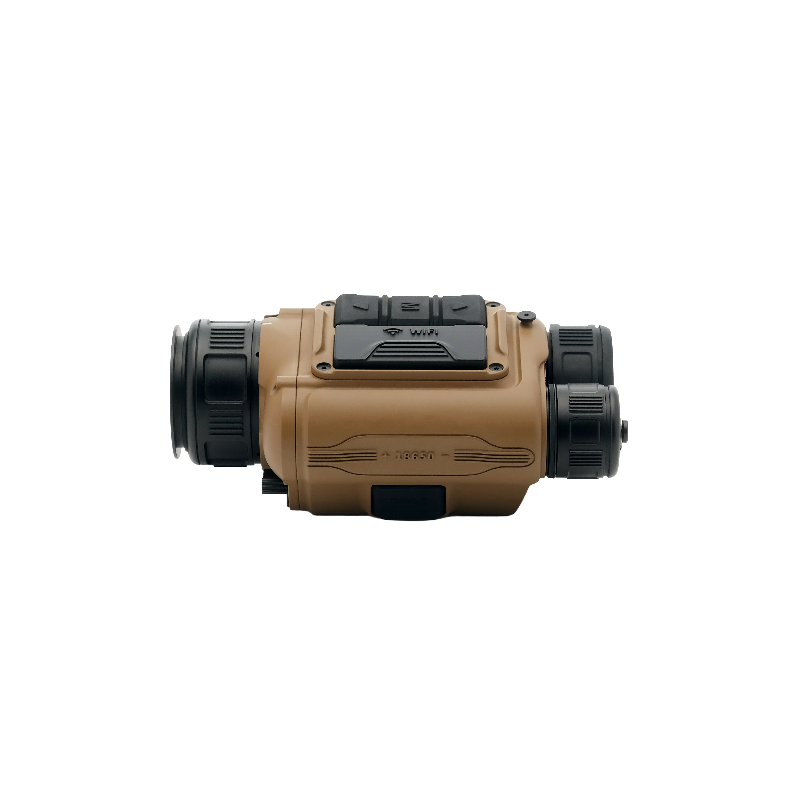

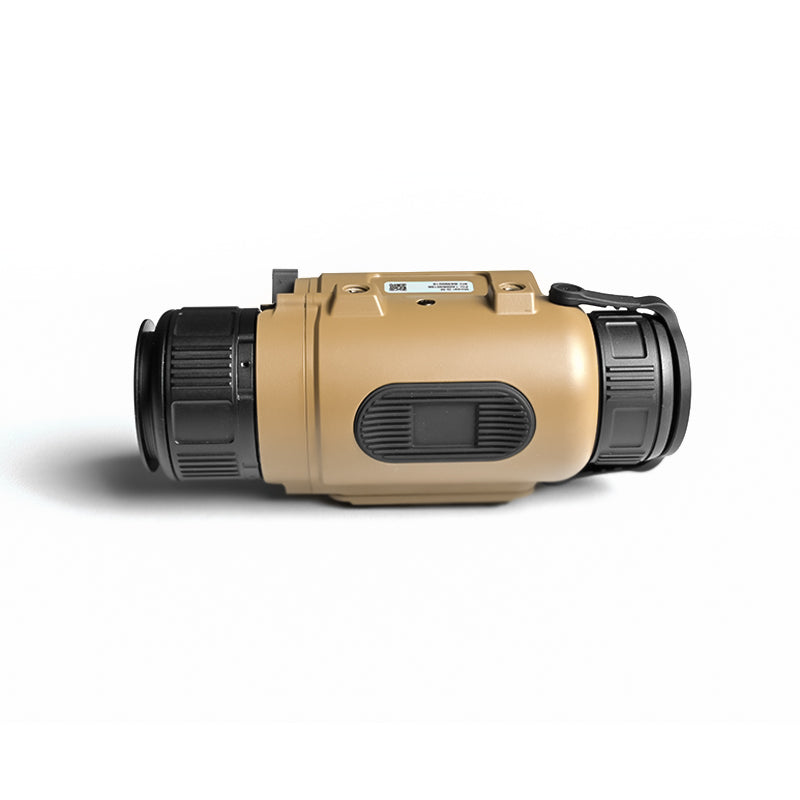

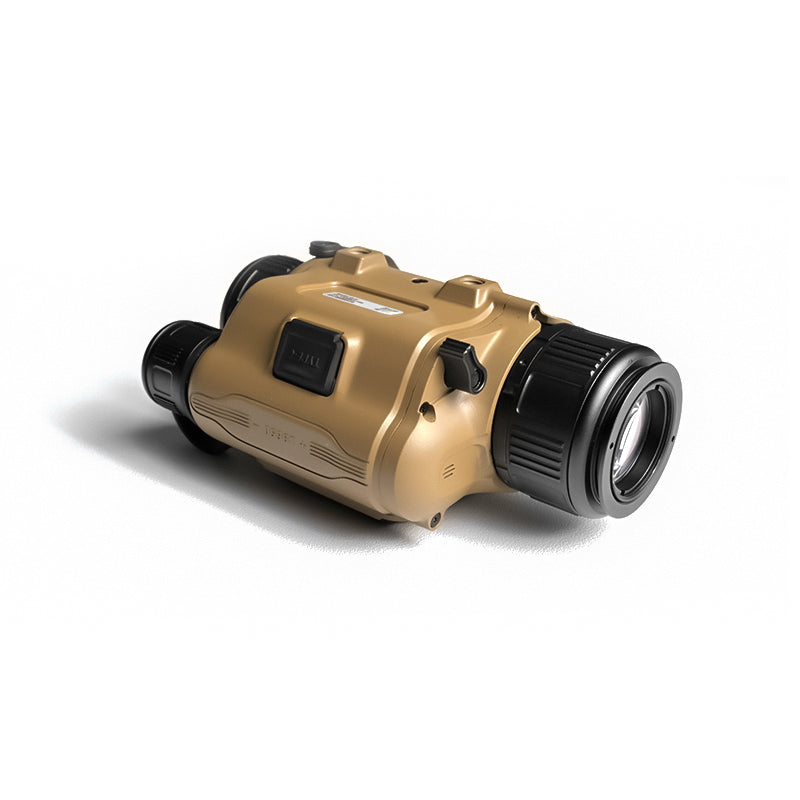

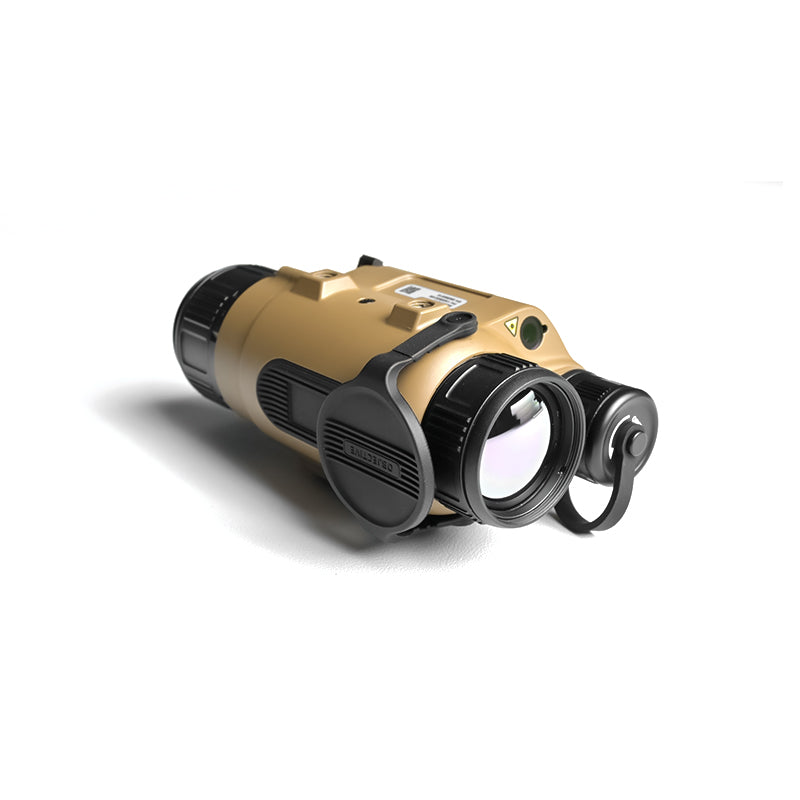

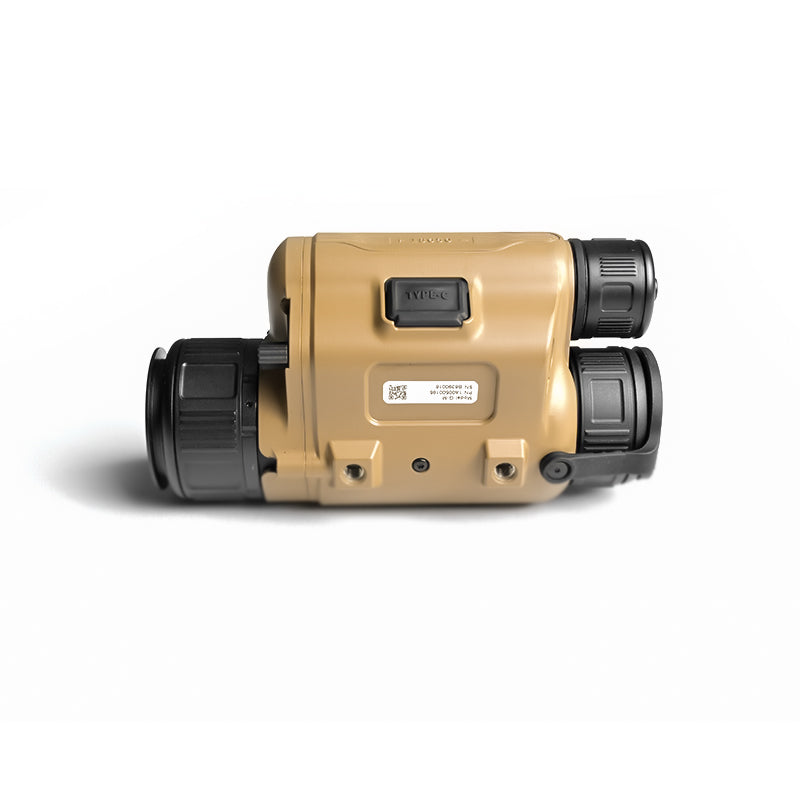

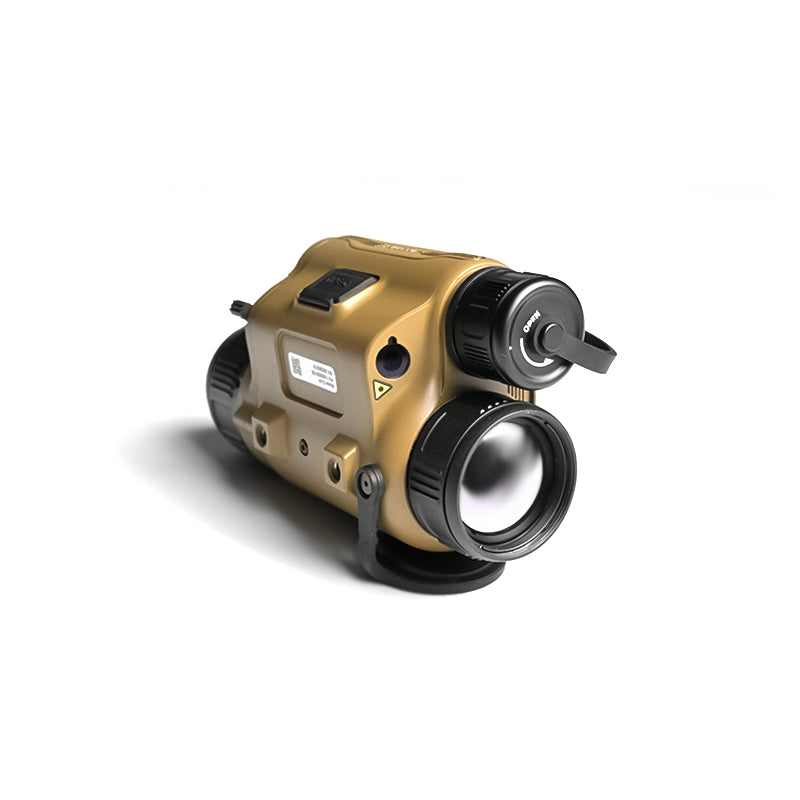

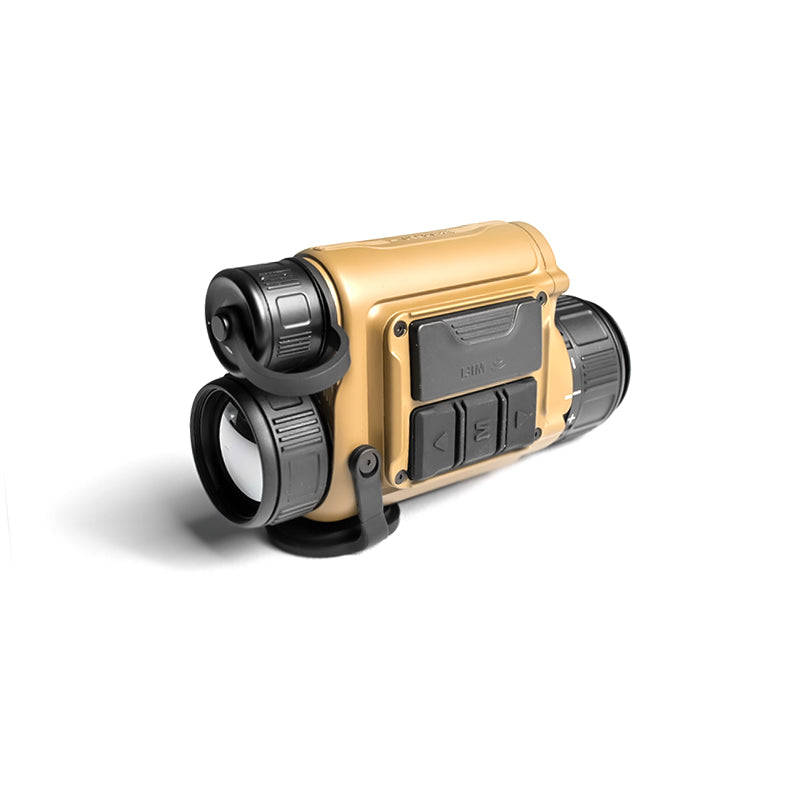

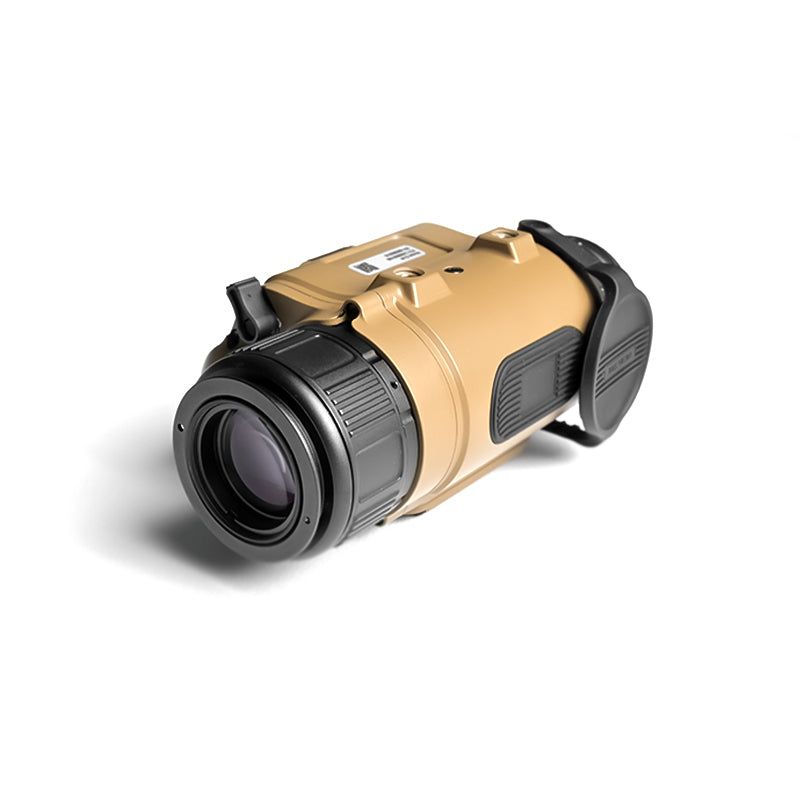

GODZILLA-M Multi-purpose Thermal Imager
GODZILLA-M Multi-purpose Thermal Imager
Regular price
$2,849.00
Regular price
Sale price
$2,849.00
Quantity
Couldn't load pickup availability
The GODZILLA-M is a multi-purpose infrared thermal imaging device adopting a shutterless design and a super-resolution algorithm. Fitted with a 0.6-inch 1080P OLED display, it supports APP interconnection, image capture, video taking, and long battery life.
Key Features
High-performance infrared detection – A frame rate of 60 Hz, NETD < 25 mK, and smooth latency-free imaging
Four-in-one device – It supports four wearing modes: scope, clip-on, helmet, and handhold with one-second switch.
HD – 0.6-inch 1920×1080 HD display
Compact body – Compact size and a weight of only 340 g.
Specifications:
| Thermal Channel | |
| Sensor Resolution | 640×512 pixels, 12μm |
| Frame Rate | 60Hz |
| Focal Length | 30mm |
| FOV (H×V) | 14.6°×11° |
| System Magnification | 1.2× |
| Digital Zoom | 0.5×/1×/2×/4× |
| Laser Pointer | |
| Wavelength | 630nm |
| Advanced Functions | |
| Operating Mode | Clip-On, Thermal Sight, Head-Mounted, Hand Held |
| PIP | ✓ |
| Ballistic Calculation | ✓ |
| Photo Taking / Video Recording | ✓ |
| Standby Mode | ✓ |
| Clean Mode | ✓ |
| Display | |
| Screen Type | 0.6inch OLED |
| Resolution | 1920×1080 |
| Eyepiece | |
| Exit Pupil Distance | 25mm |
| Diopter | -5~3D |
| Storage | |
| Standard On Board | 64GB |
| Physical | |
| Dimensions (W × H × D) | 130mm×70mm×55mm |
| Weight | ≤ 340g (no battery) |
| Power Supply | |
| Battery Type | 1 × 18650 lithium batteries |
| Battery life | >7h |
| Interfaces | |
| External Power Supply | 5V DC |
| Wired Data | USB Type-C |
| Wireless | Wi-Fi, Bluetooth |
| Environmental | |
| Shock Resistance | 1000g, 0.3ms, 1Hz |
| Immersion | IP67 |
